How to Choose a Shop Vac: Everything You Need to Know

Is every wet/dry vac basically the same? Not even close. Knowing how to choose a shop vac separates a machine that handles flooded basements and drywall dust from one that chokes on both. The right pick depends on motor amperage, tank capacity, filtration grade, and a handful of accessories most buyers overlook. This guide covers every variable worth weighing — from the home improvement workbench to the full-size garage shop.

Wet/dry vacuums — commonly called shop vacs — handle tasks no household canister can touch: standing water, sawdust, metal shavings, plaster dust, and construction debris. The market runs from compact 2-gallon portables to 20-gallon drums with commercial-grade motors. Choosing the wrong size or filter type results in a machine too weak for the job, or an oversized unit that is impractical to move and maintain.

The four sections below tackle the most persistent spec myths, walk through the numbers that actually predict performance, map units to specific use cases, and cover the most common troubleshooting scenarios buyers face after purchase.

What Most Buyers Get Wrong About Shop Vac Specs

Box specs are engineered to move product off shelves. They are not engineered to help buyers identify the right machine. Two numbers cause the most confusion: peak horsepower and tank size. Both are routinely misread as performance indicators. Neither one is.

Peak Horsepower vs. Sustained Amperage

"Peak HP" is a motor stall rating — measured at the precise instant before the motor stops spinning. It says nothing about performance during normal operation.

• A unit labeled "6.5 Peak HP" may draw only 10–11 amps under real working conditions.
• Sustained amperage — typically 10–16 amps on standard 120V residential units — is the reliable performance indicator.
• Two other metrics matter alongside amperage: airflow (CFM) and sealed suction (water lift, measured in inches). According to Wikipedia's overview of vacuum cleaner technology, sealed suction and airflow volume are the primary performance metrics across all vacuum categories.
• CFM governs bulk debris throughput — how quickly the unit clears a large surface area.
• Water lift governs pulling force in restricted geometries — tight corners, dense filter media, and narrow nozzle attachments.
• High CFM with low water lift: strong for open-floor sweeping. High water lift with moderate CFM: better for concentrated fine-dust pickup.

Pro tip: The amperage rating appears on the motor label inside the unit — check it even when the spec sheet buries it under a peak HP headline. It is the honest number.

The Tank Size Misconception

Tank volume controls one variable only: how often the unit needs to be emptied. It does not affect suction, airflow, or debris clearance capacity in any measurable way.

• A 5-gallon and a 16-gallon unit running identical motors produce identical suction output.
• Debris clearance — the ability to pass large chips, nails, or chunks through the hose — is a hose diameter issue, not a tank issue.
• Large chips and drywall chunks require a 2" or 2½" bore hose. Tank volume is irrelevant to that calculation.
• For light tasks, an oversized drum adds significant weight and footprint with zero performance return.
• Tank size selection should be based on job duration and emptying convenience — not on assumptions about suction power.

How to Choose a Shop Vac: The Specs That Actually Matter

With the marketing myths cleared away, three specs drive the purchasing decision: airflow output, filtration grade, and hose diameter. These three variables determine what debris the machine handles — and how clean the exhaust air will be for anyone working nearby.

Airflow, Sealed Suction, and Hose Diameter

• CFM (cubic feet per minute): measures the volume of air the unit moves per minute. Higher CFM accelerates bulk debris pickup across open floor areas and powers effective tool-side dust collection setups.
• Water lift (sealed suction): measures pulling force when airflow is restricted — at the filter, in a narrow nozzle, or against dense packed material. A high water lift rating matters significantly on fine-dust applications.
• Hose diameter options and their appropriate tasks:
  • 1¼" — compact portables and car detailing; limited debris clearance
  • 1½" — standard residential; handles most renovation debris comfortably
  • 2" — light workshop use, drywall cleanup, general construction sites
  • 2½" — heavy workshop operation, woodworking chip collection, high-volume pickup
• Adapter kits bridge diameter gaps between hose and tool ports, but every size transition reduces airflow velocity at the pickup point.
• Matching hose diameter to the primary task — rather than defaulting to whatever ships in the box — meaningfully affects real-world pickup performance on every use case.

Filtration Systems — Where Most Buyers Cut Corners

Filter selection has the largest downstream impact on both air quality and machine longevity. Most units ship with a standard pleated cartridge — adequate for sawdust and coarse debris, inadequate for fine silica or MDF particles.

• Foam sleeve: for wet pickup only. The standard dry cartridge must be removed before collecting liquids — saturation permanently destroys pleated filter media.
• Standard pleated cartridge: rated for general sawdust, soil, drywall chunks, and coarse construction debris. Not rated for respirable fine particles.
• HEPA-rated cartridge: captures particles to 0.3 microns at 99.97% efficiency. Required for silica dust, MDF sanding dust, and drywall compound — materials with documented inhalation hazards.
• Filter bags: installed inside the drum ahead of the cartridge, bags intercept coarse debris and substantially extend cartridge filter service life.
• Mixing filter types incorrectly — running a foam sleeve on a fine dry-dust job, for example — allows sub-micron particles to pass directly through to the exhaust stream.

When working with drywall compound or MDF, pairing a HEPA-rated shop vac with good technique reduces airborne exposure significantly. For the wall repair side of that workflow, the guide to patching drywall holes covers prep and finishing steps that limit dust generation at the source.

Matching the Machine to the Job

Understanding how to choose a shop vac for a specific task means mapping tank size, amperage, and filter type against the actual workload. The table below covers the most common use categories.

Light Home and Renovation Use

The 5–8 gallon range at 10–12 amps handles the overwhelming majority of residential tasks — without the bulk and weight of a full workshop unit.

• Tile and grout cleanup: wet and dry pickup cycles required; a standard pleated cartridge handles tile dust; 1½" hose manages grout slurry and fine debris.
• Drywall sanding dust: pleated cartridge at minimum; HEPA strongly preferred when sanding joint compound or filler.
• Minor appliance flooding: remove the dry cartridge, insert foam sleeve or run filterless per manufacturer spec; a 5–6 gallon capacity handles most residential spills without mid-job emptying.
• Car interiors: a 2–5 gallon unit with a 1¼" crevice tool handles the job; portability and nozzle suction matter more than motor size in this application.
• Weight consideration: units under 15 lbs move freely between floors and job areas; above 20 lbs, portability drops noticeably without a wheeled base.

Workshop, Garage, and Jobsite Applications

Sustained workshop use generates fine particulate debris that overwhelms undersized filters within hours. The right setup addresses both volume capacity and filtration grade simultaneously.

• 10–16 gallon tanks: standard for woodworking shops running sanders, routers, or table saws continuously; longer run time between empties keeps workflow uninterrupted.
• Cyclone dust separator: mounts between the hose and the unit inlet; pre-separates 85–90% of debris into a secondary bucket before material reaches the filter — the single most effective filter life extension available at any price point.
• Auto-start tool port: units with a power tool receptacle activate automatically when the connected tool powers on; eliminates manual switching during extended sanding or routing sessions.
• 16–20 gallon: appropriate for jobsite debris handling, large-format tearout projects, or basement flooding events where volume between empties is an operational variable.
• HEPA on renovation jobsites: work on pre-1980s structures may involve lead paint or asbestos-containing materials — HEPA filtration is the baseline requirement, not an upgrade, in those environments.

Building out a complete shop means evaluating every cutting and finishing tool on its merits. The same spec-first methodology applied here transfers directly — the breakdown of miter saw vs. circular saw walks through a comparable evaluation framework for power cutting tools.

When a Shop Vac Underperforms

Most shop vac performance problems trace back to one of five mechanical causes. Systematic diagnosis is faster than guesswork — and avoids unnecessary filter replacements or service calls on units with simple fixable issues.

Diagnosing Suction Loss

Starting with the most common causes and working down the list is the fastest diagnostic path:

1. Clogged or saturated filter: the leading cause by a wide margin. Remove the cartridge, tap it clean over a waste bin, and reinstall. Replace immediately if the pleats are packed with fine dust or if the filter has contacted liquid.
2. Full drum: debris reaching the inlet port creates immediate suction restriction. Checking the fill level and emptying resolves this in seconds. On wet-rated units, inspect the float ball if auto-shutoff activated.
3. Hose blockage or kink: running a hand along the full hose length quickly identifies kinks and compression points. Large debris jams form predictably at bends and at the inlet fitting; a stiff wire or secondary hose clears most blockages.
4. Failed lid seal or gasket: a cracked or compressed perimeter gasket breaks the airtight seal at the drum lid. Replacement gaskets are inexpensive and available for virtually all major brands.
5. Worn motor brushes: on units with years of high-volume use, declining suction that filter cleaning does not restore often indicates carbon brush wear. Brush replacement is a straightforward DIY task on most brush-motor designs.

Exhaust Blowing Dust Back Into the Air

Exhaust blowback is a filtration failure — not a motor issue. The fix is almost always upstream of the motor.

• Improperly seated filter: removing and reseating the cartridge while confirming the locking collar is fully engaged resolves the most common blowback scenario. A partial seal allows unfiltered air to bypass the media entirely.
• Missing filter on a dry job: running without a filter on dry debris sends unfiltered exhaust — including fine respirable particles — directly out the port. Confirming filter installation before every power-on is standard operating discipline.
• Wrong filter grade for the debris type: a foam sleeve on a fine-dust job passes sub-micron particles freely. Filter grade should be matched to the debris type on every job change, not left from the previous task.
• Persistent blowback on MDF or silica: no standard pleated cartridge is rated to capture particles in the respirable size range from these materials. A HEPA-rated cartridge is the only adequate solution for those specific applications.
• Filter housing bypass: on older units, checking the cartridge housing for cracks or warping that could create a bypass channel around the filter media is a worthwhile step if other fixes fail.

Frequently Asked Questions

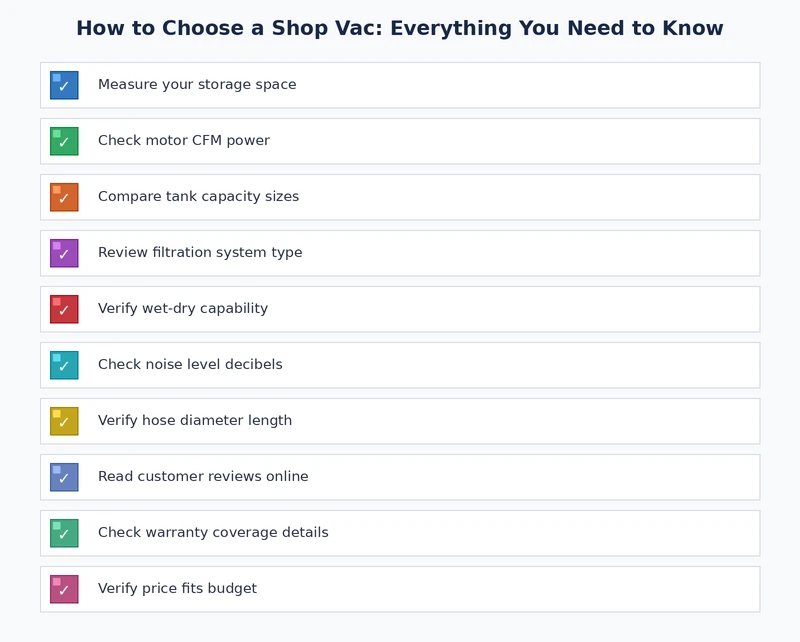

Next Steps

1. Define the primary use case — wet pickup, fine dust collection, jobsite debris, or general home renovation — before comparing any models or visiting a retailer.
2. Check the amperage rating on every shortlisted unit, not the peak horsepower figure. Amperage is the reliable predictor of real-world suction output.
3. Confirm hose diameter compatibility with existing power tools and verify that any required adapter kits are available for that model before committing to a purchase.
4. Select the correct filter type upfront — HEPA-rated for fine particulate materials like MDF and silica, standard pleated for general debris, foam sleeve for wet-only pickup — and budget for spare filters before the first heavy-use job.
5. For any high-volume workshop setup, add a cyclone dust separator to the kit. It extends filter life more than any other single accessory and pays for itself in replacement filter savings within months of regular use.
