How to Choose Underlayment for Hardwood and Laminate Floors

The right underlayment transforms a flooring project into a professional-quality installation, and knowing how to choose underlayment for hardwood floors requires evaluating your subfloor material, room moisture exposure, and manufacturer thickness specs before you buy a single roll. If you're still deciding between surface materials, our laminate vs vinyl plank flooring comparison will lock in that decision first — then come back here. For more resources like this one, the home improvement section covers every phase of a floor project.

Underlayment serves four core roles in any floor system: moisture vapor barrier, impact sound absorption, thermal insulation, and minor subfloor leveling. Choosing the wrong type for your installation method — nail-down, glue-down, or floating — creates conditions that void manufacturer warranties and produce floor movement, squeaking, and premature delamination that no surface refinishing can reverse. The variables that drive every selection decision are flooring type, subfloor composition, and the room's long-term moisture profile.

According to Wikipedia's flooring underlay reference, compression resistance and moisture vapor transmission rate (MVTR) are the two foundational specs for any underlayment product. Every other metric — STC rating, IIC rating, R-value — builds on those two, and your decision should anchor there before you evaluate price or added features.

When Underlayment Is Non-Negotiable — And When to Skip It

Situations That Demand Underlayment

You need underlayment any time you're installing a floating floor — laminate, engineered hardwood, or floating solid hardwood — over any subfloor type. Floating floors have no mechanical or adhesive bond to the subfloor, so without a cushion layer to stabilize the planks, they flex under foot traffic, generate impact noise, and wear at the locking joints far faster than the product's rated lifespan. Concrete subfloors specifically require a moisture-rated underlayment even in above-grade applications, because concrete emits moisture vapor continuously and even low MVTR levels cause cupping and swelling in wood-based floors over time.

• Floating hardwood or engineered wood over any subfloor type
• Any wood-based floor installed over concrete, including basement and slab-on-grade applications
• Rooms with elevated ambient humidity or proximity to plumbing fixtures
• Multi-story installations where impact sound transmission between floors is a priority

When It's Already Built In

Many laminate and engineered hardwood products ship with a factory-attached foam or felt pad bonded to the plank's underside, and installing a separate underlayment layer beneath a pre-attached pad creates excessive stack height and compression that voids the warranty immediately. Check the product spec sheet before you buy anything — the words "attached underlayment" or "pre-attached pad" mean you install directly on the prepared subfloor with no additional layer. Nail-down and glue-down solid hardwood installations similarly do not use underlayment, since those methods rely on direct mechanical or adhesive contact with the subfloor for structural stability and do not need the cushioning that floating systems require.

Pro tip: If your laminate already has an attached pad, adding a second layer underneath causes the locking joints to flex and crack under normal foot traffic — the floor will fail within months, not years.

Matching Underlayment to Your Flooring Type

Hardwood Floors: Nailed, Glued, and Floating

Solid hardwood installed nail-down over plywood requires no underlayment — a 15-lb or 30-lb rosin paper is all you need for basic moisture management and to prevent squeaking at the board edges. Glue-down hardwood also skips underlayment entirely, since the adhesive provides the moisture barrier and contact layer. Floating engineered hardwood is the exception: it requires a thin foam or cork underlayment with an integrated or separately installed poly moisture barrier, rated to your subfloor's MVTR. Our guide on polyurethane vs polycrylic finishes covers the surface-finishing decisions that follow installation, but getting the underlayment spec right is what protects the wood core long before any topcoat goes down.

Laminate Floors: The Attached Pad Trap

Laminate flooring without an attached pad needs a 2mm to 3mm underlayment — thicker than that and the locking joints sustain constant lateral stress from compression differential, leading to joint failure well ahead of the product's rated lifespan. Over concrete, choose a combination product with an integrated 6-mil poly moisture barrier, or lay a separate 6-mil poly sheet with foil-taped seams beneath your foam underlayment. The maximum total stack height for most laminate systems is 3mm, so measure any existing material before adding on top. If you're still weighing surface options, our laminate vs vinyl plank flooring breakdown explains how each material type interacts with underlayment compression requirements differently.

Underlayment Materials: Strengths and Trade-offs

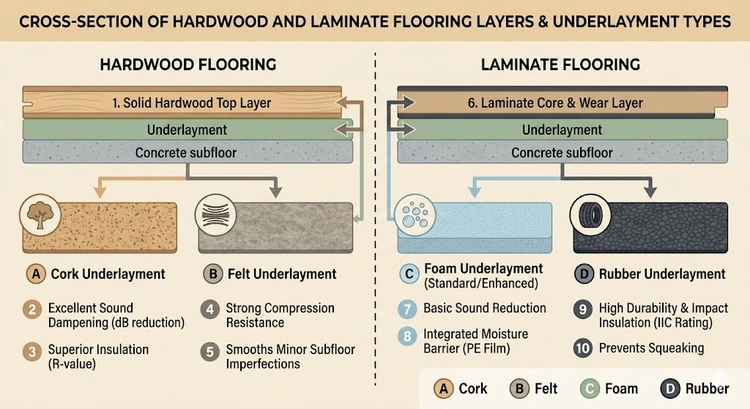

Foam, Cork, and Felt Compared

Each underlayment material has a distinct performance profile that maps to specific installation scenarios. Basic foam is the least expensive option and delivers adequate compression resistance for most floating laminate applications over wood subfloors, but it provides minimal sound attenuation and zero moisture protection on its own. Cork outperforms foam on every acoustic metric and adds meaningful R-value in rooms over uninsulated crawl spaces — our DIY insulation buying guide explains R-value calculations if you want to quantify the thermal contribution in your specific floor assembly. Felt underlayment is the preferred choice for floating engineered hardwood because it provides high density without the compressibility that causes joint stress in laminate systems.

Specialty and Combination Products

Rubber composite underlayment delivers the highest STC and IIC ratings of any category and is the correct choice for multi-family dwellings, condominiums, or any installation above an occupied space where impact noise is a code or lease requirement. Combination products — foam bonded to an integrated 6-mil poly barrier — are engineered specifically for laminate-over-concrete and are the simplest single-purchase solution when moisture management and basic sound dampening are both required. For premium floating hardwood, a cork-rubber hybrid gives you cork's thermal performance with rubber's density and moisture resistance in a single 5mm product, eliminating the need for a separately installed moisture barrier sheet.

Tools and Supplies You Need Before Installation

Measuring and Cutting Tools

Underlayment installation requires a sharp utility knife with fresh blades, a 48-inch straight edge, and a measuring tape — that's your core toolkit for cutting roll material cleanly and squarely in any room configuration. For trimming around door jambs and irregular transitions, an oscillating multi-tool gives you cleaner cuts than a knife in tight corners. Your subfloor also needs preparation before any underlayment goes down: high spots greater than 3/16 inch over 10 feet need grinding or planing, and low spots require self-leveling compound. After your floor is installed, you'll need to cut transition strips and reducers — our miter saw vs circular saw guide covers which cutting tool handles those finish details most effectively.

Sealing and Fastening Supplies

Moisture barrier seams must be overlapped a minimum of 6 inches and sealed with foil tape, not standard duct tape or painter's tape — moisture vapor migrates through tape adhesive over time, and only foil tape creates a true continuous barrier that holds under seasonal humidity swings. Underlayment rolls are typically held in place with perimeter stapling on wood subfloors or double-sided tape on concrete; never staple through a poly moisture barrier because each hole creates a vapor pathway. Before laying underlayment, set any raised fasteners in the plywood below the surface using a nail set, and review our guide to choosing the right sandpaper grit if you're knocking down adhesive residue or minor surface inconsistencies. For subfloor gaps and voids larger than 1/8 inch, wood filler vs spackle explains which patching compound handles structural wood repairs without compressing under load.

Warning: Never use spray adhesive to bond underlayment rolls at the seams — it creates a compression-resistant ridge that telegraphs through thin laminate planks as a visible raised hump under foot traffic.

Keeping Your Underlayment Working Over Time

Moisture Management After Installation

Underlayment does not require direct maintenance — once it's sealed under your floor, it's inaccessible — but the conditions around it require ongoing management to keep it performing as designed. Control room humidity between 35% and 55% year-round, because wood floors expand and contract with humidity changes and those repeated movements compress and release the underlayment layer in ways that accelerate material fatigue over time. In below-grade or slab installations, test for moisture vapor emission before and after installation using a calcium chloride test kit or in-situ RH probe, because concrete moisture levels shift seasonally and an underlayment rated for your initial reading may be underspecified after a wet season cycle.

Signs Your Underlayment Is Failing

Underlayment failure presents four recognizable signatures: new squeaking where the floor was previously silent, a spongy feel underfoot that wasn't there at installation, visible board movement when you cross the room, and cupping or crowning in individual planks. Any of these signals points to underlayment compression failure, moisture intrusion, or both — and the only fix is pulling the affected section, replacing the underlayment, addressing the moisture source, and reinstalling the floor. Understanding how different floor surfaces respond to subfloor conditions also matters: our guide to choosing bathroom floor tile covers how subfloor prep requirements vary between hard and resilient materials in high-moisture zones.

Long-Term Strategy: Building a Floor System That Lasts

Factoring in Future Renovations

Select your underlayment thickness with your total floor height budget in mind, because every millimeter you add to the stack reduces the clearance you have available for transitions to adjacent rooms, door swing clearance, and appliance kickplate fits. In renovation scenarios where you're floating a new floor over an existing resilient surface, account for the existing surface height in your stack calculation before you purchase anything. Floating floor systems are generally reusable if you remove them carefully, but the underlayment is not — budget for full underlayment replacement any time you lift a floor, regardless of how recently the original material was installed, because compression-set foam and felt do not recover their original performance characteristics after sustained loading.

When to Upgrade Your Underlayment

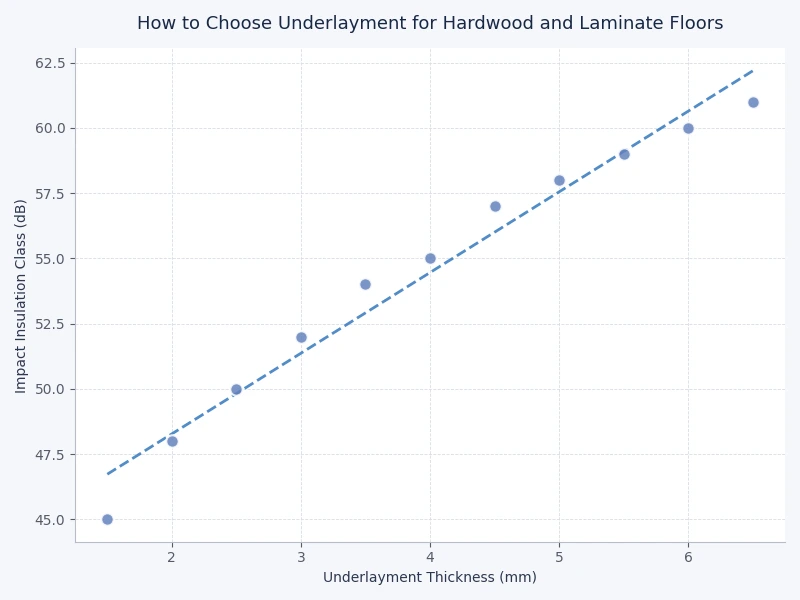

Upgrade from basic foam to cork or rubber composite any time your acoustic requirements increase — a new tenant below your unit, a nursery above a living area, or HOA sound transmission requirements that weren't in place at your original installation. Premium underlayment adds 10 to 22 IIC points over basic foam, which is the measurable difference between audible footfall in the room below and acceptable levels under most residential building codes. Upgrading also makes financial sense when you're already replacing or refinishing the floor surface, since the labor cost of pulling and reinstalling the flooring absorbs the material cost increase without requiring a separate project mobilization.

Frequently Asked Questions

Key Takeaways

• Match underlayment material and thickness to your flooring type, subfloor composition, and moisture profile — no single product is correct for every scenario, and mismatching any one variable leads to premature floor failure.
• Always verify the manufacturer's maximum underlayment thickness before purchasing, because exceeding that spec voids your warranty regardless of how well the rest of the installation is executed.
• Cork and rubber composite outperform basic foam on acoustic metrics by a factor of three to five, making material selection critical in any multi-story or multi-family application.
• Concrete subfloors require a continuous 6-mil poly moisture barrier regardless of underlayment type — omitting it guarantees cupping, swelling, or delamination within a few seasonal humidity cycles.
