The U.S. Department of Energy estimates that air leaks around doors and windows account for up to 30% of a home's heating and cooling energy costs — and the exterior door is almost always the biggest single leak point. Knowing how to choose weatherstripping for exterior doors is one of the cheapest, highest-return fixes a homeowner can make. For anyone planning a broader upgrade, the home improvement section has plenty of companion projects that pair naturally with this one.
Weatherstripping isn't the most exciting home project, but swap out worn or missing seals on an exterior door and the difference is immediate — no more cold drafts cutting across the floor in winter, no more summer heat creeping in under the door, and a noticeably lower energy bill within a billing cycle or two. The tricky part is that there are half a dozen different types, and each one is designed for a specific location on the door frame. Pick the wrong one and it either falls off in a month or doesn't seal at all.
This guide breaks down every major type, compares materials with real numbers, walks through the actual tools required, and covers the installation steps that determine whether a seal holds for one season or a decade. Whether it's a front entry door, a side garage door, or a back patio door, the decision framework is the same — just scaled slightly to the gap size and traffic level.
Contents

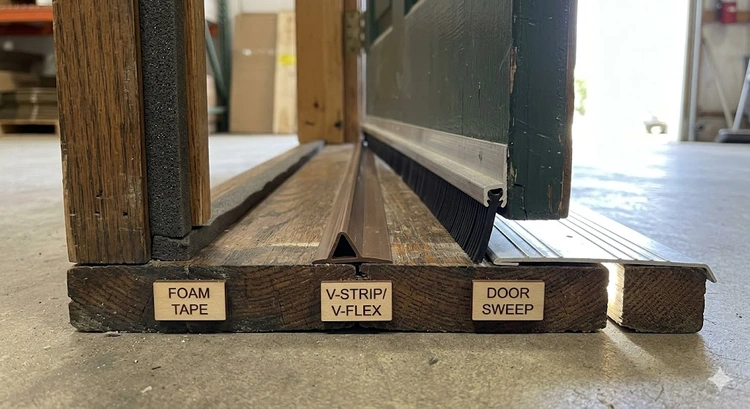

There are five main types of weatherstripping used on exterior doors. Most complete door installations use two or three types together, because each one addresses a different part of the sealing problem. The first step in figuring out how to choose weatherstripping for exterior doors is understanding that no single type handles the entire door.
V-strip — also called tension seal weatherstripping — is a folded piece of metal or stiff plastic shaped like the letter "V." It presses into the narrow channel (groove) between the door and the jamb along the sides and top of the door frame. When the door closes, the V compresses and creates a firm, draft-blocking seal. It's the most durable option for the sides and top of the frame.
Bronze V-strip in particular is the best long-term investment in this category. It can last 20 years or more without replacement and handles temperature swings, humidity, and repeated compression without losing its spring. Plastic V-strip works fine but tends to stiffen and crack after 3–5 years in harsh climates.
The bottom of the door is almost always the biggest draft gap. Door sweeps attach to the interior bottom edge of the door and drag across the threshold (the raised strip at the base of the door frame) to block air, insects, and moisture. Two main styles exist: automatic door sweeps, which lift when the door opens and drop when it closes; and fixed sweeps that stay in constant contact with the floor. Fixed sweeps work fine on smooth thresholds. Automatic sweeps are better on textured or uneven surfaces because they don't drag and wear out as fast.
Foam tape is the easiest to install — peel and stick — but it's also the weakest option. It works for gaps up to about ¼ inch and is a reasonable choice for low-traffic doors or as a quick temporary fix. Bulb seals (sometimes called Q-lon or bulb weatherstripping) are a meaningful step up: they're hollow rubber or vinyl seals mounted to a rigid spine. They compress and spring back reliably through thousands of open-close cycles and handle seasonal expansion and contraction far better than foam. For a door that opens daily, bulb or rubber compression strips are worth the slightly higher cost.
The material cost for a single exterior door is genuinely low — full door kits run $10–$60 depending on material and quality. The real variable is whether professional installation is involved, which adds $100–$200 in labor. For a DIY install, the materials are the whole budget.
Budget foam tape is fine for a rarely-used back door or a storage room. For a front entry door that opens and closes multiple times daily, cheap foam compresses permanently after one season and stops sealing entirely.
Bronze V-strip is the best overall value — it costs slightly more upfront than plastic but lasts 4–5 times longer. Anyone redoing a high-traffic front door should buy bronze for the jambs and an automatic sweep for the bottom. That combination handles 95% of exterior door sealing needs.
Pro tip: Replace all three sides of the door frame at the same time, even if only one side looks worn — partial replacements almost always leave a gap somewhere that undoes the whole job.
No power tools required. Weatherstripping is a genuine DIY project with a short tool list. That said, a few specific tools make the job significantly cleaner and prevent the most common installation errors.
That's the complete toolkit. Total cost if starting from scratch: under $20 for basic hand tools. Most of these get reused across dozens of other home projects, so it's not a dedicated weatherstripping investment.

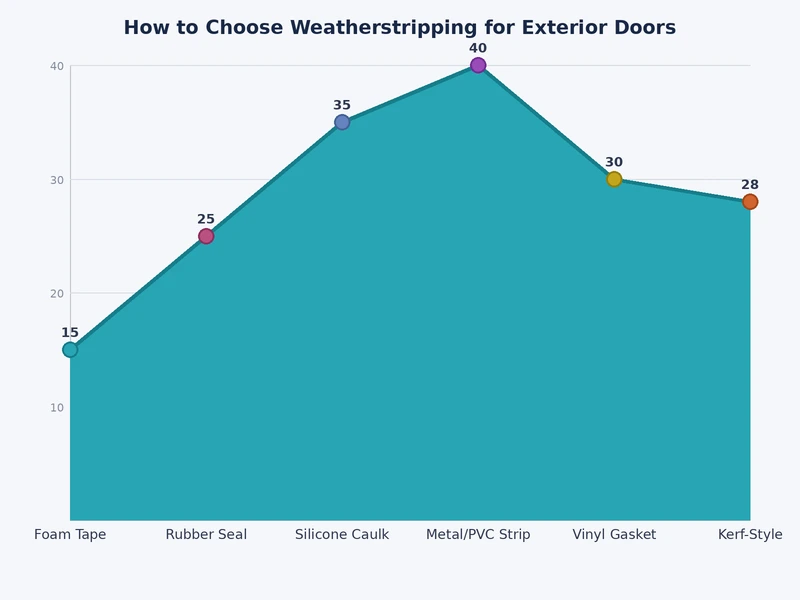

One of the more confusing parts of learning how to choose weatherstripping for exterior doors is sorting through the material options at the hardware store. Here's an honest comparison with real numbers.
| Type | Material | Avg. Lifespan | Cost / Linear Ft. | DIY Difficulty |
|---|---|---|---|---|
| Foam tape | Open-cell foam | 1–3 years | $0.25–$0.60 | Very easy |
| V-strip (plastic/vinyl) | Vinyl | 3–7 years | $0.40–$0.80 | Easy |
| V-strip (bronze) | Spring bronze | 15–25 years | $0.80–$1.50 | Moderate |
| Bulb / Q-lon seal | Rubber or vinyl | 5–10 years | $0.60–$1.20 | Easy |
| Silicone bulb strip | Silicone | 10–15 years | $1.20–$2.00 | Easy |
| Fixed door sweep | EPDM rubber | 3–7 years | $1.00–$2.50 | Easy |
| Automatic door sweep | Aluminum + rubber | 5–12 years | $2.00–$4.00 | Moderate |
Using the wrong type is the single most common weatherstripping mistake — more detail on that in the mistakes section. Here's the short version by location:
For gaps that weatherstripping can't handle — like static cracks in the door frame casing or gaps where the frame meets the siding — the caulk vs. sealant guide covers exactly what to use and where the two products overlap.
Choosing the right type is half the job. Installing it correctly is the other half. A well-chosen material installed carelessly will fail just as quickly as cheap foam tape, and the most common failure mode is skipping the prep work.
Old adhesive residue, paint buildup, and debris inside the door channel are the three main reasons new weatherstripping fails early. Before installing anything new:
That last point matters more than most people realize. If the gap at the top of the door is ½ inch on the latch side and zero on the hinge side, the door frame needs adjustment — not thicker foam. Weatherstripping is designed to seal small, consistent gaps in the ⅛ to ¼ inch range. It doesn't compensate for structural or alignment problems.
Measure twice, cut once is the right call here. A gap in a corner join or a piece that's ¼ inch too short completely breaks the seal. A few practical tips that make a real difference:
The paper test costs nothing and takes 10 seconds. It's the most reliable field check for whether a seal is actually working.
Most weatherstripping jobs that fail early come down to a short, repeatable list of errors. Learning how to choose weatherstripping for exterior doors means learning what not to do just as much as what to buy.
The most common mistake: foam tape on the bottom of a door. Foam tape works by compression — it seals when squeezed between two surfaces. The bottom of a door experiences friction every single time it opens and closes. Foam tape at the bottom edge shreds within weeks on a busy door. A door sweep belongs there. No exceptions.
The opposite problem also happens: using a thick bulb compression seal or double-layered foam on the side jambs creates too much resistance. The door becomes hard to close fully, latches don't engage cleanly, and over time the additional force stresses the hinge hardware. V-strip or a thin compression seal is the right call for jambs — it creates a seal without fighting the door.
Reusing the adhesive backing from old weatherstripping is tempting — it's already there, it looks intact. It never works reliably. Adhesive that's been compressed for years has lost its bonding strength. New weatherstripping applied over it will peel off within weeks, especially in temperature extremes when materials expand and contract. Always clean down to bare wood or metal before installing anything new.
A few other errors that are easy to avoid once aware of them:
For anyone tackling this as part of a broader energy upgrade, the DIY insulation buying guide covers where weatherstripping ends and insulation begins — wall cavities, attic hatches, and rim joists are the next layer of the air-sealing stack that weatherstripping alone can't address.
The location on the door determines the type. V-strip or bulb compression seals go on the sides and top of the door frame. A door sweep goes on the bottom of the door. Foam tape is a backup option for low-traffic doors or the door stop (the raised frame strip the door closes against). When in doubt, buy a full door kit that includes all three components — it removes the guesswork and ensures compatible sizing.
It depends on the material and how heavily the door is used. Budget foam tape may only last one to two seasons on a daily-use door. Rubber and vinyl compression seals typically last five to ten years. Bronze V-strip is the longest-lasting option at fifteen to twenty-five years. A simple annual check — close the door and look for daylight around the edges, or do the paper-drag test — catches worn sections before they become significant energy leaks.
Yes, in most cases. V-strip installs into the jamb channel with the door on its hinges. Door sweeps mount to the interior face of the door and can be installed with the door in place using just a screwdriver or drill. The only time door removal simplifies things is when the channel groove is packed with old adhesive or paint and needs thorough cleaning — a workbench gives better access for scraping and prep work.
The right weatherstripping in the right spot costs less than a tank of gas and pays back every winter — the only mistake is waiting until another cold draft shows up to do anything about it.
