A weekend mechanic once spent the better part of an afternoon chasing a sluggish throttle response, convinced the issue was fuel-related. The fix turned out to be a severely clogged factory air filter that had been choking the engine for two seasons. That afternoon, the entire intake system came off and a performance unit went in — and the difference was immediate. Knowing how to install a cold air intake puts that same kind of accessible upgrade within reach for most car owners. It requires minimal tools, manageable skills, and a clear afternoon. Drivers exploring this and other vehicle upgrades can find a broader range of options in the automotive accessories category.
Cold air intakes work by relocating the air filter away from the engine's heat zone and drawing cooler, denser air into the combustion chamber. Cooler air carries more oxygen per cubic foot, which allows the engine management system to optimize combustion more effectively. The factory intake is engineered for broad compatibility, emissions compliance, and noise reduction — not peak airflow. An aftermarket cold air intake trades some of those compromises for improved breathing.
The installation shares structural similarities with other DIY automotive projects. Anyone who has worked through a guide like the one on how to install aftermarket car speakers will recognize the pattern: disconnect, remove, fit, reconnect, test. Cold air intake work follows the same methodical rhythm and is similarly forgiving for first-timers.
Contents

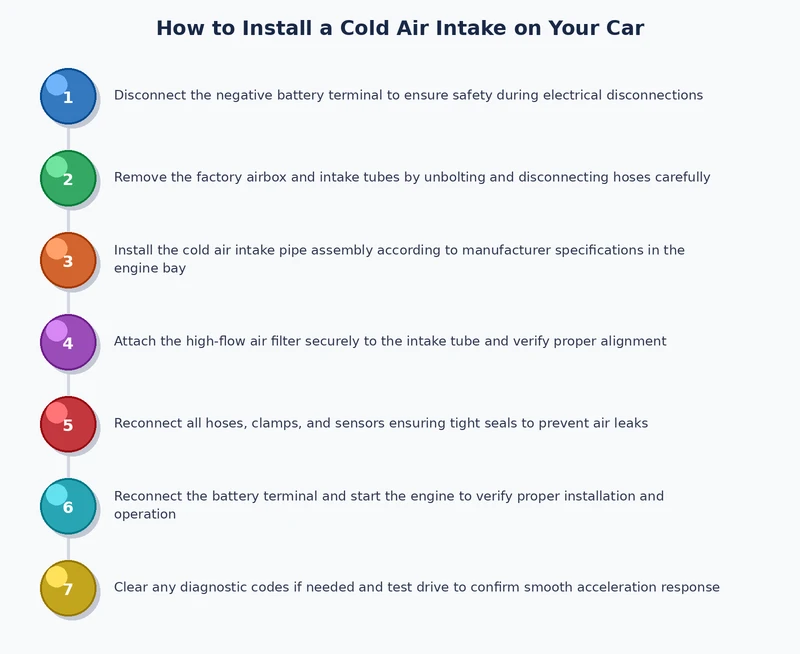

The process of how to install a cold air intake follows a logical sequence that most home mechanics can complete without specialized training. Always refer to the included instructions for vehicle-specific routing details — these steps represent the general procedure across most applications.
Vehicle-specific kits are strongly preferred over universal units. They account for exact routing paths, mass airflow (MAF) sensor position, and bracket requirements. Key factors to confirm before purchasing:
Standard toolkit for most installations:
Allow the engine to cool completely before beginning. Plastic components can warp under stress when hot, and burn risk near the exhaust manifold is real.
The standard instructions cover the mechanics. These observations address the details that trip up first-time installers more often than the steps themselves.
Setting realistic expectations before installation prevents disappointment and informs a smarter buying decision.
The primary benefit is increased airflow volume and density. According to Wikipedia's overview of cold air intakes, typical gains on naturally aspirated engines range from 5 to 20 horsepower depending on vehicle and design. Additional commonly reported benefits include:
| Factor | Cold Air Intake | Factory Intake | Short Ram Intake |
|---|---|---|---|
| Air temperature at filter | Coldest (away from heat) | Moderate (sealed box) | Warmest (engine bay) |
| HP gain (typical street) | 5–20 HP | 0 (baseline) | 3–10 HP |
| Installation complexity | Moderate | N/A | Simple |
| Hydrolock risk | Low–Moderate | Very Low | Very Low |
| Filter service interval | 15,000–50,000 mi (reusable) | 12,000–15,000 mi (disposable) | 15,000–50,000 mi (reusable) |
| Typical cost range | $100–$400 | $15–$40 (filter only) | $50–$200 |
| Sound character | Noticeably louder | Quiet and insulated | Moderately louder |
A cold air intake delivers different value depending on the platform and how the vehicle is used. The context matters as much as the modification itself.
Vehicles that stand to gain the most include:
For everyday use, the gains on a stock four-cylinder are real but subtle. Most daily drivers report a more responsive pedal feel rather than dramatic acceleration improvement. The enhanced intake sound makes the commute more engaging, and long-term filter costs often favor the reusable design.
Drivers who pair performance upgrades with vehicle protection tend to get the most well-rounded result. The guide on how to apply ceramic coating to a car covers the exterior protection side of a broader vehicle modification program — a natural companion project to under-hood work.
Timing and context determine whether a cold air intake is the right call at a given moment.
Even a clean installation can produce unexpected issues within the first few drives. Most problems have identifiable causes and straightforward solutions.
The check engine light is the most common post-install complaint. The usual culprit is MAF sensor disturbance — from physical handling, an improperly seated connector, or oil contamination from an over-oiled filter. Diagnostic steps:
Pro tip: If an oiled filter is suspected of contaminating the MAF sensor, use a brand-matched MAF cleaner only — generic aerosol electronics sprays can leave residue that worsens the problem and may require sensor replacement.
A rough idle or reduced power after installation typically points to air leaks or improper connections:
A cold air intake requires periodic attention to sustain its performance advantage. Neglect turns a meaningful upgrade into a liability — a clogged performance filter flows worse than a fresh factory paper element.
Oiled cotton gauze filters need cleaning every 15,000 to 50,000 miles, with dusty or rural environments shortening that interval significantly. Dry synthetic filters skip the oiling step entirely and carry zero MAF contamination risk — a meaningful advantage for daily drivers.
Cleaning procedure for oiled filters:
Owners who get the most sustained value from a cold air intake treat it as part of a broader maintenance discipline rather than a set-and-forget modification:
Under the Magnuson-Moss Warranty Act in the United States, a dealer cannot void an entire vehicle warranty solely because an aftermarket part was installed. However, if a specific warranty claim is directly related to the intake modification — such as a MAF sensor failure or throttle body damage — the manufacturer may deny coverage for that particular issue. Reviewing the vehicle warranty terms and consulting a dealer before installation is the safest approach, especially on newer vehicles.
On most naturally aspirated street cars, realistic gains range from 5 to 15 horsepower at peak RPM. Turbocharged vehicles often see slightly higher returns because forced induction amplifies the benefit of denser incoming air. In everyday driving, the gain is more perceptible as improved throttle response and mid-range pull than as dramatic top-end power — the sensation is often more satisfying than the dyno sheet suggests.
The primary risk is hydrolock — water ingestion through a filter positioned low in the engine bay during heavy rain or flooding. This can destroy an engine in seconds and is almost never covered by warranties or insurance. Using a bypass valve, raising the filter position, or opting for a short ram intake in wet-climate regions eliminates this risk. Proper handling of the MAF sensor during installation also prevents damage from electrostatic discharge or physical trauma to the sensing element.
For a first-timer working methodically with instructions, most vehicle-specific cold air intake installations take one to three hours. Experienced mechanics can often complete the job in under an hour. Older vehicles with corroded fasteners, unconventional factory intake routing, or limited engine bay access may require significantly more time and penetrating oil on stubborn bolts.
A cold air intake will operate on most modern fuel-injected vehicles without a dedicated tune because the ECU adapts fuel delivery calculations through the MAF sensor reading. However, a professional ECU tune extracts the maximum benefit by recalibrating fuel and ignition timing to fully exploit the improved airflow. Tuning is particularly worthwhile when the intake is part of a larger modification package including an upgraded exhaust, camshafts, or other airflow-related changes.
A cold air intake positions the filter far from engine heat — typically near the front bumper or fender well — to draw in cooler ambient air. A short ram intake places a cone filter directly in the engine bay for simpler installation and a louder induction note, but the filter sits in warmer air, reducing the oxygen density benefit. Cold air intakes generally deliver more consistent performance gains in warm climates; short ram intakes offer simpler installation, lower cost, and reduced hydrolock risk.
A cold air intake remains one of the most satisfying entry points into automotive performance modification — a project that combines genuine mechanical learning with a tangible result on the road. Drivers ready to take the next step should select a vehicle-specific kit from a reputable brand, clear an afternoon, and work through the installation methodically. Starting the engine and hearing that sharpened induction note for the first time tends to confirm the decision before the first real drive even begins.
