How to Choose the Right Drywall Anchors for Any Wall

Anyone who has faced a blank wall and debated whether a plastic sleeve or a heavy-duty toggle bolt will actually hold the new shelf securely is already asking the right question — and knowing how to choose drywall anchors is one of the most practical skills in home renovation. The answer hinges on three variables: wall material, load weight, and anchor design, and getting all three right is non-negotiable for a safe installation. Readers looking for more project guidance can explore the full home improvement section for related buying guides and tutorials.

Drywall — the pressed gypsum board (a chalk-like mineral compound sandwiched between paper layers) found in virtually every modern interior wall — is softer than it looks and crumbles unpredictably under lateral (sideways) stress. That fragility is compounded by the fact that wooden studs (the vertical support beams behind the wall surface) are spaced 16 or 24 inches apart, so most desired hanging locations fall between them entirely, leaving only the gypsum board to bear the load.

The anchor market has responded with a wide spectrum of fastener designs, each engineered to distribute that load more effectively across the wall material. Options range from plastic plugs that cost a few cents apiece to zinc-alloy toggle bolts rated above 100 pounds, and the difference between choosing correctly and carelessly can mean the difference between a solid installation and a fist-sized wall repair.

What Drywall Anchors Are and Why Wall Type Changes Everything

A drywall anchor is a fastener designed to create a secure mounting point in wall material that cannot support a screw on its own. Without one, a screw driven directly into gypsum board will spin freely, pull out under minimal load, or crack the surrounding material along unpredictable lines. According to the Wikipedia overview of drywall construction, standard half-inch gypsum board has a core that is inherently brittle under concentrated point loads, which is the mechanical problem anchors are specifically engineered to solve.

How Gypsum Board Differs from Plaster and Masonry

Older homes built before the 1950s commonly used plaster walls — a three-coat system applied over wooden lath strips — which are denser and harder than drywall but also more brittle and prone to cracking around fastener holes. Concrete and masonry walls require entirely different hardware: sleeve anchors or wedge anchors designed for solid, non-hollow substrates. The same anchor that performs beautifully in half-inch drywall will fail immediately in a plaster-over-brick wall, which is why identifying the wall type before purchasing anchors is the mandatory first step in the selection process.

Finding Studs — and Knowing When to Skip Them

A stud-mounted screw is always stronger than any anchor solution, and a reliable electronic stud finder (a handheld sensor that detects density changes behind the wall surface) eliminates the guesswork in seconds. When a stud aligns with the mounting location, the correct move is to drive a 2.5-inch wood screw directly through the drywall into the stud and skip the anchor entirely. When studs do not align — which describes the majority of real-world hanging locations — the right anchor for the specific load and wall thickness becomes the only safe path forward.

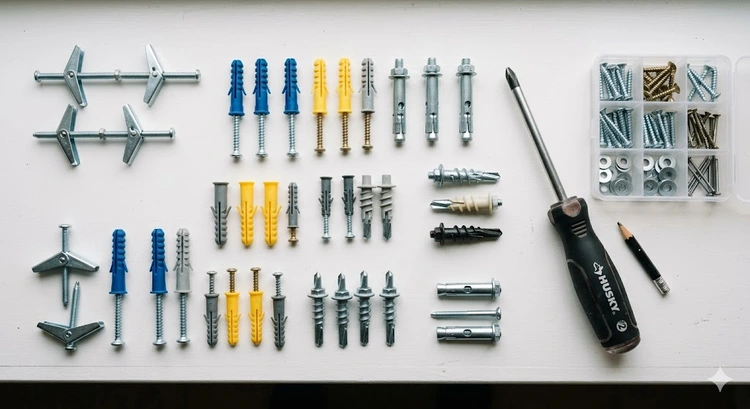

How to Choose Drywall Anchors: A Side-by-Side Comparison of the Six Common Types

Understanding the mechanical differences between anchor families is the clearest route through the confusion at the hardware store. The table below covers the six types most commonly found on shelves, rated across the factors that matter most for practical selection decisions.

Plastic Expansion Anchors

These conical plastic sleeves are bundled with most budget picture-frame hardware and are consistently misused for loads they were never designed to handle. Properly installed in half-inch drywall with the correct pilot hole diameter, a standard plastic expansion anchor holds 10 to 20 pounds reliably, but lateral stress — the kind imposed by a shelf loaded with books — accelerates failure dramatically. They are difficult to recommend for anything beyond flat, lightweight wall art.

Self-Drilling Threaded Anchors

The threaded zinc or nylon self-drilling anchor (sometimes sold as E-Z Ancor or Cobra) eliminates the pilot-hole step entirely, drives with a standard Phillips screwdriver, and achieves pull-out resistance far superior to plastic expansion plugs. At 25 to 75 pounds depending on model and wall thickness, these represent the best balance of ease and capacity for most everyday hanging tasks, and they are the correct default choice for anyone uncertain about which type to buy.

Toggle Bolts and Snap Toggles

Toggle bolts — the spring-loaded wing fasteners that open behind the wall cavity — deliver the highest load ratings available for hollow-wall installations, routinely exceeding 100 pounds when properly seated. The newer snap toggle (a refined version with a plastic channel that holds position while the bolt is driven) addresses the traditional toggle's main weakness: the wings drop into the wall permanently if the bolt is ever fully removed. Snap toggles eliminate that problem and are the superior choice for any removable heavy-mount application.

Molly Bolts and Threaded Metal Inserts

Molly bolts feature a sleeve that expands and clamps against the back of the drywall as the central screw is tightened, creating a broad bearing surface that resists pull-out effectively up to about 50 pounds. They are a reasonable choice for bathroom grab rails and towel bars, but once installed they deform permanently — removing the bolt collapses the anchor and leaves a larger hole than any alternative above. Threaded metal inserts, by contrast, can be backed out cleanly and reinstalled, making them the better investment for locations that may need future access.

Matching the Right Anchor to the Specific Job

Light Loads Under 20 Pounds

Standard picture frames, small decorative shelves, smoke detector brackets, and lightweight coat hooks all fall into this category, and a self-drilling zinc anchor handles them more than adequately. The plastic expansion plug technically qualifies here, but the self-drilling variant installs faster, holds more reliably, and costs only marginally more — making the expansion plug a difficult product to recommend even for light applications.

Medium Loads: 20 to 50 Pounds

Curtain rod brackets, bathroom mirrors, floating shelves loaded with moderate contents, and wall-mounted tool organizers all land in this zone. Self-drilling metal anchors at the higher end of their rated range and molly bolts both perform reliably here, and the choice between them comes down to removability: metal threaded inserts can be backed out and reused, while molly bolts cannot. Similar weight-rating logic applies across product categories — the rock climbing harness buying guide illustrates how load specifications translate directly into safety outcomes, and the same discipline applies to anchor selection.

Heavy Loads Over 50 Pounds

Flat-screen television mounts, floating media consoles, wall-mounted storage systems, and exercise equipment brackets all require snap toggles or traditional toggle bolts. Wall-mounted basketball hoops are a prime example of this heavy-load category — readers evaluating that specific project can find detailed structural mounting guidance in the basketball hoop buying guide, which addresses load transfer and bracket requirements directly. For anything above 75 pounds, stud blocking (adding solid wood between studs during a renovation) is the single best long-term solution.

The Tools Required for a Clean Anchor Installation

Drill Selection and Bit Sizing

A corded or cordless drill with variable speed is essential for any anchor type that requires a pilot hole, and matching bit diameter to the anchor specification is non-negotiable for proper grip. Using a bit even 1/16 of an inch too large eliminates the friction a plastic or threaded anchor needs to function, while a bit too small splits the gypsum or prevents the anchor from seating flush with the wall surface. Most self-drilling anchors ship with the recommended bit size printed directly on the packaging — following that specification exactly is the correct approach every time.

Verifying a Solid Installation Before Loading

A simple tug test — applying firm lateral and outward force to the installed anchor before loading it fully — catches most installation errors before they become wall damage. A properly set snap toggle will not move at all under firm manual force, and a loose molly bolt or partially driven self-drilling anchor will rotate or pull slightly and must be removed and replaced before any load is applied. This step costs two minutes and is the single most reliable quality-control measure available to a non-professional installer.

Techniques That Separate Solid Installs from Failures

Pre-Testing a Single Anchor Before Committing

Experienced installers routinely test a single anchor at full torque before installing the remaining fasteners in a multi-point mount, which catches issues with wall voids, low-density gypsum, or hidden utilities that could compromise the full installation. This step costs two minutes and prevents the kind of wall damage that requires a full patch-and-paint repair cycle — a process covered thoroughly in the wood filler vs. spackle guide for readers who want to handle those repairs confidently when they do arise.

Protecting the Wall Surface During Drilling

Drill bit slip at the start of a cut is the leading cause of cosmetic wall damage during anchor installation. Placing a small strip of painter's tape (a low-tack masking tape that peels cleanly without pulling paint) over the marked location before drilling gives the bit a surface to bite into, prevents the paper face of the drywall from tearing, and leaves a cleaner hole regardless of the anchor type being installed.

Pro tip: Always drive anchors slightly below the wall surface — a flush or proud (protruding) anchor transfers stress to the thin paper face layer rather than the denser gypsum core, reducing holding strength by a measurable margin.

Planning Anchor Layouts That Accommodate Future Changes

Gallery Walls and Multi-Point Load Systems

A gallery wall — a curated arrangement of frames, shelves, and objects across a large wall section — typically involves 10 to 30 individual anchor points, and mapping the full layout before driving a single anchor is essential for avoiding wasted holes. Templates made from kraft paper allow the full arrangement to be visualized at full scale, repositioned at no cost, and finalized before any holes are committed to the wall. This kind of systematic pre-planning is the same approach the tent buying guide recommends for campsite layout decisions — matching the plan to the space before taking any irreversible action.

When to Invest in a Heavier Anchor Than the Load Requires

Specifying a snap toggle for a 30-pound load when a self-drilling anchor would technically suffice is not wasteful — it is a deliberate safety margin that accounts for dynamic loads (weight that shifts or vibrates), future load increases, and the reality that manufacturer weight ratings assume ideal installation conditions that rarely exist in actual walls. A snap toggle rated at 200 pounds used for a 40-pound application costs roughly two dollars more per anchor and eliminates concern entirely. The same principle of specifying beyond the minimum applies across gear categories — the fishing rod buying guide for beginners makes a parallel argument about matching rod power ratings to the heaviest expected load rather than the average one.

The Most Common Drywall Anchor Mistakes

Overloading and Ignoring Weight Ratings

The most common anchor failure mode is ignoring the printed weight rating on the packaging, which leads to overloaded anchors that strip out gradually over weeks or months rather than failing immediately and visibly. A shelf loaded incrementally — one book, then another, then a decorative object — can easily exceed a modest anchor's rating without any single addition feeling significant, making this failure mode particularly insidious. Matching anchor specification to intended load, including a reasonable buffer, is the core principle of how to choose drywall anchors responsibly across any project type or load category.

Using the Wrong Anchor for the Wall Type

Installing a self-drilling threaded anchor in a plaster wall shatters the plaster face on contact; installing any hollow-wall anchor in a concrete block wall accomplishes nothing; using standard toggle bolts in a steel-stud (thin metal framing used in commercial buildings and some residential renovations) partition without verifying stud material risks catastrophic failure under load. Steel studs require specialized toggle bolts with longer wings designed to span the stud cavity, and confusing them with standard wood-stud hardware is a mistake that appears with troubling frequency in renovation repair requests.

Frequently Asked Questions

Key Takeaways

• Anchor selection depends on three non-negotiable variables — wall material, load weight, and anchor design — and getting any one of them wrong risks wall damage and a failed installation.
• Self-drilling threaded anchors are the correct default choice for most everyday hanging tasks in the 25-to-75-pound range because they install without a pilot hole, hold reliably, and cost very little.
• Snap toggles are the definitive answer for anything above 50 pounds on a hollow wall — their load ratings, clean removability, and consistent performance make them worth the modest price premium over every alternative.
• Identifying the wall type before purchasing any anchor is mandatory — the same fastener that excels in half-inch gypsum board will crack plaster, spin in concrete, and underperform in steel-stud partitions.
