What separates a smooth, productive workday from a string of tool failures and tripped breakers? The extension cord for power tools is the answer most users never consider until something goes wrong. The wrong cord introduces voltage drop, generates damaging heat in motor windings, and shortens tool life by years — consequences that far outweigh the cost of simply buying the right cord from the start. For anyone serious about home improvement work, understanding cord specifications is as foundational as knowing which fastener belongs in which wall.
The core variables — wire gauge, cord length, amperage rating, and jacket material — govern every extension cord decision, and they interact in ways that consistently trip up even experienced users. A 100-foot, 16-gauge cord that handles a shop light without complaint will steadily strangle a 15-amp circular saw, producing exactly the kind of sustained voltage drop that burns out armatures and motor windings over hundreds of operating hours. Getting the spec right means understanding what each variable does and how it shifts under real working conditions.
The relationship between cord length and wire gauge is the most overlooked factor in the entire decision. As cord length increases, resistance increases proportionally, and the voltage arriving at the tool drops below what its motor expects. A drop of even five to ten percent below rated voltage can reduce motor output by fifteen to twenty percent, causing the motor to draw excess current to compensate — which generates heat and accelerates wear across every internal component from brushes to bearings.
Contents

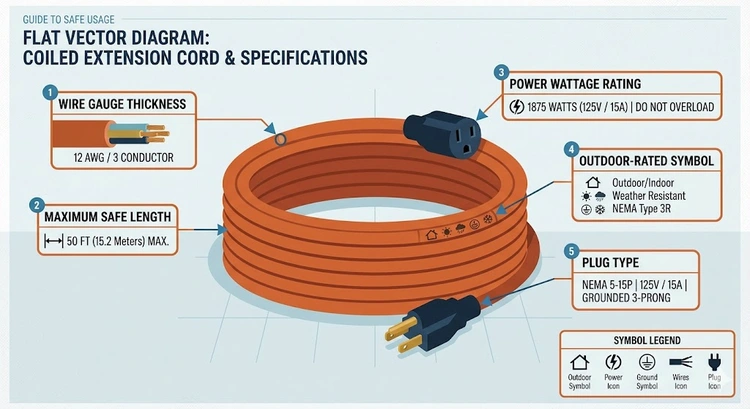

Wire gauge — measured in American Wire Gauge (AWG) — determines how much current a cord can carry without overheating. Lower AWG numbers mean thicker wire and higher ampacity. The three gauges that matter most for power tool use are 16, 14, and 12, with 10-gauge cords appearing on the heaviest jobsite applications such as large air compressors and contractor-grade table saws. A 16-gauge cord carries up to 13 amps safely over short distances; a 12-gauge cord handles 20 amps continuously, which covers virtually every common power tool in a home workshop or light-commercial setting.
Every additional foot of cord adds resistance, and resistance produces voltage drop at the tool end. The practical rule: step up one wire gauge for every significant increase in cord length, particularly when the tool draws more than 10 amps. The table below shows minimum recommended gauge pairings for common tool amperage draws and cord lengths — treat it as a floor, not a ceiling.
| Tool Amperage Draw | Up to 25 ft | 25–50 ft | 50–100 ft | 100–150 ft |
|---|---|---|---|---|
| Up to 7A (drills, detail sanders) | 16 AWG | 16 AWG | 14 AWG | 14 AWG |
| 7–10A (jigsaws, rotary tools) | 16 AWG | 14 AWG | 14 AWG | 12 AWG |
| 10–15A (circular saws, routers) | 14 AWG | 12 AWG | 12 AWG | 10 AWG |
| 15–20A (table saws, air compressors) | 12 AWG | 12 AWG | 10 AWG | 10 AWG |
A dedicated workshop benefits most from a 50-foot, 12-gauge cord rated at 20 amps — a single cord that covers the router, circular saw, and random-orbit sander without swapping or compromising. For benchtop tools like scroll saws and oscillating spindle sanders that draw under five amps, a 14-gauge cord in the 25-foot range delivers adequate power without the bulk and stiffness of heavier wire. The same logic that drives careful material selection in woodworking — choosing correctly between epoxy and wood glue for a specific joint — applies directly to power delivery: the right specification for the job, every time.
Outdoor use demands a cord with a "W" suffix in its jacket rating — designations like SJTW or STW — indicating weather-resistant construction that handles moisture, temperature swings, and UV exposure without jacket degradation. Jobsite cords take physical abuse from rolling tool carts, repeated coiling, and foot traffic, and only a properly rated jacket survives those conditions without cracking and becoming a shock hazard. A lighted end plug that glows when the cord is energized adds a meaningful safety check in bright outdoor environments where a small LED indicator on the tool itself may be difficult to see from across the work area.
Pro Tip: Always check the nameplate amperage stamped on the tool before selecting a cord — that number reflects the running draw, not the startup surge, which can spike two to three times higher for the first fraction of a second when the motor engages.
Table saws, miter saws, belt sanders, and air compressors all draw sustained amperage that 14-gauge cords cannot deliver safely at distances beyond 25 feet. Router tables running large bits at full depth put sustained loads on motors that regularly exceed 12 amps, making a 12-gauge cord the lowest acceptable specification regardless of distance. For users adding a rotary hammer or demolition tool to their kit — the kind of heavy-duty tool warranting the same research given to choosing the right drywall anchors for structural loads — a 12-gauge cord should be factored into the total tool budget from day one.
Light finish work — orbital sanders, trim routers, heat guns drawing under ten amps — at distances under 50 feet presents no meaningful challenge to a quality 16-gauge cord with a proper UL listing. The caveat is that light gauge does not mean low quality: the cord must still carry appropriate jacket ratings for the environment and have connectors that fit snugly without play. Painting and finishing projects using detail sanders or finish nailers rarely push amperage requirements high enough to justify the extra weight and cost of heavier wire, and using a 16-gauge cord appropriately is not a compromise — it is the correct tool for the load.
Connecting two extension cords in series — daisy-chaining — doubles the resistance in the circuit and produces voltage drop that compounds with every added cord segment. The Occupational Safety and Health Administration identifies daisy-chained cords as a leading cause of overheating incidents on construction sites, and the physics are unambiguous: each junction adds contact resistance on top of conductor resistance, reducing voltage at the tool end in ways that damage motors over time. Running a single longer cord of the appropriate gauge is always the correct solution. A separate but equally common mistake involves using a cord while it remains coiled on a reel — coiled conductors build heat they cannot dissipate, which can melt insulation even when the cord operates within its stated ampacity rating.
Warning: Never run an extension cord under a rug, through a wall opening, or across a doorway — physical abrasion and heat buildup in confined, unventilated spaces are among the most common causes of cord-related electrical fires in residential workshops.
Unlisted cords sold through discount channels frequently carry inaccurate gauge labeling and use conductor material or insulation that does not meet the published specification. A UL-listed cord has been independently tested to verify that its construction matches its stated rating; a cord without that mark carries no such assurance. Using an indoor-rated cord outdoors exposes the jacket to moisture and UV that can compromise insulation within a single season of use. The small premium for a properly rated cord is negligible when weighed against the cost of a burned-out motor or an insurance claim. The same discipline applies across all home improvement material decisions — knowing when to use wood filler versus spackle comes down to matching the right product to the substrate and conditions, not defaulting to whatever is most convenient.
A practical approach for most home workshops involves three cords purchased with intentionality rather than impulse:
This three-cord system eliminates the temptation to grab whatever is nearest, covers the vast majority of residential and light commercial scenarios, and keeps the total investment under $150 when purchased from reputable brands. The approach mirrors the thinking behind building any well-researched materials toolkit — whether selecting the right insulation type and R-value for a specific cavity or choosing fasteners for load-bearing applications, the right specification selected in advance prevents problems that improvisation creates.
Proper storage extends cord life significantly and prevents the jacket cracking that creates shock hazards over time. Cords should be stored in large-diameter loops using the over-under technique — alternating the direction of each loop — which prevents internal twists from accumulating in the conductor bundle. Hanging storage on pegboard hooks or purpose-built cord reels keeps cords off the floor, away from foot traffic and chemical spills, and ready to deploy without untangling. Inspect every cord quarterly for cracked jacket sections, bent or corroded prongs, and loose connector housings, and retire any cord showing physical damage immediately without attempting repair with electrical tape.
This is the most persistent and damaging misconception in power tool use. A tool running on an undersized cord is not running fine — it is running on reduced voltage, drawing excess current to compensate, generating heat in both the cord jacket and the motor windings, and accumulating wear that shortens service life with every hour of use. The damage is cumulative and invisible until a winding fails, a brush assembly disintegrates, or a jacket melts under sustained load. The absence of an immediate failure is not confirmation that the setup is correct; it is confirmation that the failure has not yet become visible. Much like selecting the right interior paint finish for durability rather than immediate appearance, cord selection must be driven by the application's actual demands, not by surface-level functionality.
A 12-gauge cord connected to a five-amp trim router does not over-deliver or waste energy — it simply carries less than its rated capacity, with no meaningful efficiency difference compared to a 16-gauge cord over the same short distance. The error only runs in one direction: a cord too light for the tool creates real, measurable problems, while a cord heavier than strictly necessary creates none. The only practical disadvantages to overspecifying cord gauge are added weight and slightly higher cost, both of which are minor considerations compared to the risk of running an undersized cord on a high-draw tool through dozens of projects.
Insight: A cord that is warm to the touch after a period of use is dissipating electrical energy as heat rather than delivering it to the tool — that warmth is a reliable, real-time indicator that the gauge is undersized for the application and distance.
Entry-level cords from established brands like Woods or Southwire in the sub-$20 range typically offer 16-gauge construction at 25 feet with a UL listing and a basic SJT jacket. These are appropriate for occasional light-duty use — finish tools, portable fans, task lighting — but their jacket durability and connector housings are noticeably inferior to mid-range options. Budget cords are not suitable for daily workshop or jobsite duty, and the money saved rarely covers the cost of a single motor repair triggered by chronic voltage drop.
The $20–$50 range covers the vast majority of serious home workshop needs with meaningful build quality. Brands like Husky, Dewalt, and Ridgid produce 12-gauge cords in 25- and 50-foot lengths within this tier, featuring lighted end plugs, robust SJTW jacket ratings, and connector housings that hold up to regular use and repeated plugging cycles. A 50-foot, 12-gauge SJTW cord from a recognizable brand for $35–$45 represents the best overall value for a mixed workshop and outdoor use case, and it is the right starting point for most users building their first properly specified cord collection.
Professional-grade cords from Klein Tools, Southwire's contractor line, or Cerrowire exceed $50 for 50-foot, 12-gauge configurations, but they deliver meaningfully thicker jacket construction, cold-temperature flexibility ratings important for unheated garages and winter jobsites, and connector housings with superior grip, strain relief, and weather resistance. For users who deploy cords daily in demanding conditions — construction sites, outdoor renovation work, high-cycle shop environments — the premium construction pays for itself in longevity and eliminates the replacement cycles that make cheap cords considerably more expensive over a three-to-five-year period.
Most circular saws draw between 12 and 15 amps under load, which requires a 12-gauge cord for runs up to 100 feet. At 25 feet or less, a 14-gauge cord is technically sufficient for saws drawing under 13 amps, but a 12-gauge cord is the safer universal choice that eliminates the need to recalculate for different tools or distances.
Daisy-chaining two cords doubles the resistance in the circuit and creates compounding voltage drop that can damage motors and overheat both cords simultaneously. The correct solution is always a single cord of the appropriate gauge and length — a 100-foot, 12-gauge cord is far safer and more effective than two 50-foot cords connected in series.
The "W" suffix in designations like SJTW or STW indicates that the cord's jacket is rated for outdoor use, meaning it is constructed to resist moisture, UV exposure, and temperature extremes without cracking or degrading. Cords without the "W" suffix are indoor-only products and should never be used in outdoor, garage, or other damp or variable-temperature environments.
Performance degradation depends entirely on the combination of cord length, wire gauge, and tool amperage draw. A 12-gauge cord delivers acceptable voltage to most power tools at up to 100 feet; a 10-gauge cord extends that range to 150 feet for high-draw tools. The practical limit for reliable power tool operation with any cord is 150 feet, and anything beyond that length requires a dedicated circuit outlet closer to the work area.
