A contractor once handed a homeowner a roll of foam padding before a laminate installation and remarked, without elaboration, that this product was the only thing standing between a quiet floor and one that sounded like a snare drum every time someone walked across it. That single observation captures the essential function of flooring underlayment for laminate and vinyl — a critical layer between the subfloor and the finished surface that controls impact noise, manages moisture vapor, and provides thermal insulation most buyers never consider until the floor underperforms. Selecting the correct underlayment requires a systematic understanding of subfloor conditions, moisture exposure, and the acoustic and thermal demands specific to each installation environment.
The market offers foam, cork, rubber, and combination underlayment products, each engineered for specific subfloor conditions and performance priorities that vary considerably from one installation to the next. A basement installation demands integrated vapor barrier protection, while a second-story living room prioritizes sound dampening and joint stability over moisture control. Before selecting an underlayment product, installers benefit from understanding how the flooring material itself affects the decision — the resource on laminate vs. vinyl plank flooring clarifies how each material interacts differently with the underlayment beneath it, particularly regarding moisture tolerance, flexibility, and pre-attached padding considerations.
The subfloor surface type — concrete slab, plywood deck, or existing tile — shapes every underlayment decision, from vapor barrier requirements to minimum density specifications, and treating underlayment as a commodity purchase rather than a performance component accounts for a significant proportion of the premature laminate failures documented in manufacturer warranty claims every year.
Contents
The installation process begins well before the underlayment roll is ever unpackaged, because a thorough subfloor inspection identifies high spots, low spots, cracks, and moisture concerns that affect both the underlayment's long-term performance and the floating floor assembly above it. Most laminate manufacturers specify that subfloor height variation cannot exceed 3/16 inch over a 10-foot span, and deviations beyond this tolerance cause the floor to flex under load, stressing the locking joints and leading to premature failure at the plank connections.
Concrete subfloors require a moisture test — either a calcium chloride test or an in-situ relative humidity probe — before any underlayment selection occurs. Readings above 75% RH indicate a need for an underlayment product with a built-in Class 1 vapor barrier rated to the appropriate permeance level, typically between 0.15 and 0.5 perms for below-grade and on-grade applications where seasonal moisture fluctuations are most significant.

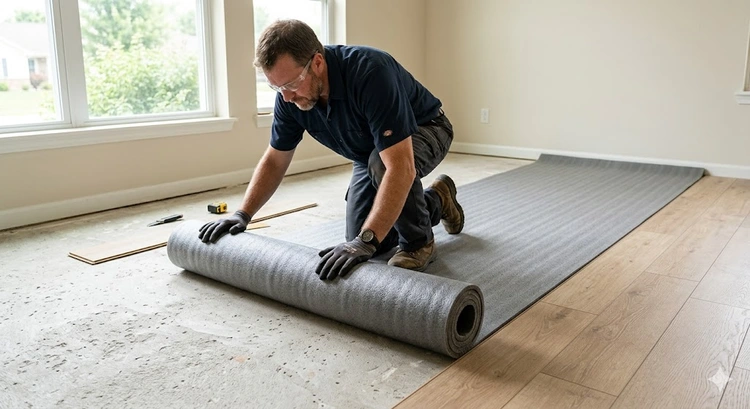

Foam and cork underlayments roll out perpendicular to the flooring plank direction, with each successive row butted tightly — never overlapped — against the previous row's edge. Overlapping creates a raised ridge that telegraphs through thin laminate and causes the finished floor surface to develop a rocking motion, which cracks the tongue-and-groove locking connections over time. Seams close with the manufacturer-specified tape, since standard painter's tape is insufficient and allows moisture to migrate through the joint under seasonal humidity variation.
Combination underlayments — those with an attached vapor barrier film on one face — orient the film side down toward the subfloor on concrete installations. On wood subfloors above grade, some installers omit the vapor barrier entirely because wood subfloors benefit from the ability to breathe; a fully sealed vapor barrier over a wood deck traps moisture from below and accelerates rot at the subfloor panel edges over multi-year periods.
Underlayment runs wall to wall without turning up onto the wall surface, and the 1/4-inch expansion gap required by laminate and LVP manufacturers positions between the flooring edge and the wall — not between the underlayment and the wall itself. Trimming underlayment flush to the wall base simplifies the expansion gap management during flooring installation. On wood subfloors, installers sometimes use construction staples to hold foam underlayment stationary during plank layout, though tape remains the preferred method on concrete where staples cannot penetrate the slab surface.
Underlayment density correlates directly with long-term compression resistance, and this distinction is where bargain-tier foam products consistently underperform against more expensive alternatives over a multi-year installation lifespan. Standard 2mm foam underlayment compresses to approximately half its original thickness under the concentrated weight of furniture legs and repetitive foot traffic within two to three years, eliminating the cushioning effect and allowing the floating floor above to develop noisy flex points at the plank joints throughout the room.
Dense foam or cork products rated above 15 psi compression resistance maintain their structural profile measurably longer, with quality cork products retaining over 85% of original thickness after five years of normal residential use in independent testing. High-traffic zones — hallways, entryways, kitchens — benefit from higher-density underlayment even when the remainder of the installation uses standard foam, provided the height differential at the transition strip is managed with a reducer that blends the two surfaces smoothly.
On concrete subfloors, always conduct a calcium chloride or RH probe test before purchasing underlayment — skipping this step and discovering moisture damage after installation is a significantly more expensive lesson than the cost of the test itself.
Moisture remains the leading cause of premature laminate failure, and the underlayment's role in controlling moisture vapor transmission cannot be separated from the long-term performance equation. A properly selected vapor barrier underlayment rated between 0.5 and 2 perms blocks the majority of moisture vapor rising from concrete slabs during seasonal humidity fluctuations, protecting the laminate core from the swelling and delamination that degrades locking joints and creates visible surface gaps across the floor.
Above-grade installations on wood subfloors require a different moisture strategy entirely. The detailed guide on choosing vinyl plank flooring for moisture-sensitive environments illustrates why underlayment vapor management must account for both the subfloor type and the flooring product's own moisture tolerance, since LVP and laminate cores respond very differently to moisture exposure at the substrate level.
Each underlayment category occupies a specific performance niche, and matching material type to installation conditions produces better outcomes than selecting based on price alone. The table below summarizes the primary specifications across the major underlayment categories currently available for residential laminate and vinyl installations.
| Material | Thickness Range | Cost per Sq Ft | Typical IIC Rating | Vapor Barrier | Best Application |
|---|---|---|---|---|---|
| Standard Foam | 2–6mm | $0.10–$0.25 | 50–55 | No (separate required) | Above-grade wood subfloor, budget installs |
| Foam + Vapor Film | 2–3mm | $0.20–$0.40 | 52–57 | Yes (film attached) | On-grade concrete, beginner installations |
| Cork | 2–6mm | $0.50–$0.90 | 62–70 | No (separate required) | Sound reduction priority, thermal comfort |
| Rubber (Recycled) | 3–6mm | $0.60–$1.20 | 65–72 | Varies by product | Multi-story, high-traffic residential |
| Combination (MLV) | 3–5mm | $0.50–$0.90 | 63–68 | Yes (integrated) | Apartments, multi-family, condos |
| Radiant-Compatible | 1.5–2mm | $0.40–$0.80 | 45–50 | Varies by product | Hydronic or electric heated slabs |
Standard polyethylene foam is the entry-level choice, universally compatible with laminate locking systems and available in 2mm, 3mm, and 6mm thicknesses at accessible price points. Its primary advantage is ease of installation alongside broad compatibility with most floating floor systems. The trade-offs include limited acoustic performance relative to premium materials and the compression degradation described above, which makes it a practical choice for low-traffic bedrooms and guest rooms where performance demands are modest over the installation lifetime.
Cork is harvested from the bark of Quercus suber trees, and according to Wikipedia's overview of cork material properties, its cellular structure delivers natural resistance to compression, moisture absorption, and thermal transfer — properties that translate directly into underlayment performance. Cork products offer IIC ratings 10 to 15 points higher than comparable foam, making them the preferred choice in multi-story homes where impact noise transmission to lower floors is a primary concern. The disadvantage is price — two to four times the cost of standard foam — and the requirement for a separate vapor barrier on concrete subfloors, since cork alone provides minimal moisture protection.
Recycled rubber underlayment occupies the premium acoustic tier alongside cork, delivering the highest IIC and STC ratings available in residential products without requiring additional mass layers. Combination underlayments — foam bonded to an integrated vapor barrier film — hit a practical cost-performance sweet spot for most installations on concrete, providing moisture control without the additional labor of rolling out a separate poly sheet before underlayment installation begins. Products incorporating mass-loaded vinyl within a combination stack represent a significant acoustic upgrade appropriate for condominiums and multi-family buildings where building codes or HOA rules mandate minimum acoustic performance ratings for hard-surface flooring.
Most laminate manufacturers cap maximum allowable underlayment thickness at 3mm to 4mm, and exceeding this specification voids the product warranty on virtually every major brand. The locking joint geometry in laminate planks assumes a defined range of subfloor give, and too much cushion allows the plank edges to flex beyond the design tolerance, cracking the tongue-and-groove connection at the joints over time. The practical guideline holds that 2mm to 3mm foam or cork suits the majority of standard residential installations, while 6mm products require explicit verification against the flooring manufacturer's published specifications before installation proceeds.
R-value becomes most significant in installations positioned over unconditioned spaces — garages, vented crawl spaces, and concrete slabs in cold climates where ground temperatures drop below 50°F through winter months. Standard 3mm foam delivers an R-value of approximately 0.5, while cork provides R-3.2 per inch, making it considerably more effective for thermal insulation in cold-floor applications where occupant comfort is a priority. Rooms where children spend extended time on the floor — play areas, nurseries, home gyms — benefit measurably from the thermal improvement that cork or a high-density combination product provides over standard foam in climate zones with significant heating seasons.
Two acoustic metrics govern underlayment performance claims: IIC (Impact Isolation Class) measures impact noise reduction such as footsteps and dropped objects, while STC (Sound Transmission Class) measures airborne noise reduction including voices and music. For residential laminate installations, an IIC rating above 60 and an STC above 50 represent the practical threshold for a floor that noticeably reduces noise transmission compared to a bare subfloor assembly. Standard 2mm foam typically achieves IIC 50 to 55 in laboratory testing; quality cork and rubber products reach IIC 65 to 70, a difference that is immediately perceptible to occupants in rooms directly below the installed floor.
For installers tackling their first laminate project, the most consequential decision is identifying whether the subfloor is concrete or wood and whether the installation is above grade, on grade, or below grade. These three variables determine whether a vapor barrier is required, which immediately eliminates a substantial portion of the available product options from consideration. Beginners benefit most from combination underlayment products — foam with an integrated vapor barrier in a single roll — because they reduce the total installation steps and eliminate the separate seaming and taping labor required when laying a poly sheet independently before the underlayment layer.
The comprehensive resource on choosing underlayment for hardwood and laminate floors addresses these foundational decisions in depth, and first-time installers should review that guide alongside the specific underlayment requirements published in their flooring manufacturer's installation guide before purchasing any materials for the project.
Experienced renovators approach underlayment selection as a floor assembly systems problem, evaluating the full stack — subfloor surface, vapor barrier, underlayment, flooring, and finish coating — and optimizing each layer for the specific environmental conditions present. An installer working on a below-grade basement conversion, for example, accounts for the fact that concrete moisture transmission increases during wet seasons, and specifies an underlayment with a Class 1 vapor barrier rated at 0.15 perms rather than relying on the standard 1-perm film included in most entry-level combination products.
Radiant heating systems introduce a specific compatibility requirement that catches many experienced installers off guard during product specification. Most standard foam underlayments are incompatible with hydronic or electric in-floor heating systems because the thermal resistance of the underlayment reduces heating efficiency and creates heat concentration that degrades foam cellular structure over time. Specialized thin-profile underlayments rated for radiant heat exist in the 1.5mm to 2mm range, and many LVP and laminate manufacturers produce dedicated radiant-compatible underlayment products within their own accessory lines for this reason.
The most common installation error remains overlapping underlayment seams rather than butting them together, which creates an elevated ridge that causes the floating floor above to develop a visible hump and a persistent squeaky flex point at that location across the full installation lifespan. A utility knife and a metal straightedge make accurate butt joints straightforward, and the additional 30 seconds required per seam far outweighs the cost of a failed floor that requires complete removal and reinstallation to correct the underlying problem.
A closely related error involves failing to tape seams with the manufacturer-specified tape or substituting incorrect tape products. Moisture migrates freely through untaped seams in concrete-slab installations, defeating the entire purpose of the vapor barrier component and allowing moisture to reach the laminate core during seasonal humidity peaks. Foil-faced tape or the proprietary seam tape provided by the underlayment manufacturer represents the correct specification for all vapor barrier underlayment installations, regardless of how dry the subfloor appears at installation time.
Installing standard foam underlayment without a vapor barrier on a concrete subfloor — particularly in basements and slab-on-grade structures — produces laminate swelling, joint gapping, and mold accumulation beneath the floor within one to two years in most climates. Even a concrete slab that tests dry at installation will transmit moisture vapor during seasonal humidity changes at levels that exceed the moisture tolerance of unprotected laminate core material. A calcium chloride moisture test costs under $30 and requires less than 72 hours, eliminating this risk entirely before any product is purchased.
For homeowners working through a broader bathroom or wet-area renovation alongside a flooring project, the related discussions on grout vs. caulk for tile joints and selecting bathroom floor tile address moisture management decisions in adjacent wet spaces where underlayment selection also intersects with waterproofing strategy.
Many current laminate and LVP products ship with a pre-attached foam underlayment bonded directly to the back face of each plank, and adding a second layer of rolled underlayment beneath a pre-attached product universally violates manufacturer installation guidelines. The combined thickness of both layers exceeds the locking joint's design tolerance, causing premature lock failure at the plank connections within the first one to two years of use. Installers who prefer a specific acoustic or thermal underlayment product for performance reasons should select flooring without pre-attached backing — a detail worth confirming when comparing the technical differences between laminate and vinyl plank products during the initial flooring selection process.
A combination foam underlayment with an integrated vapor barrier rated between 0.15 and 1 perm is the most practical choice for concrete subfloor installations, providing moisture control and cushioning in a single product. Below-grade installations where moisture readings exceed 75% RH benefit from a Class 1 vapor barrier product rated at 0.15 perms rather than the standard film included in most entry-level combination products.
On concrete subfloors, pre-attached foam backing does not substitute for a proper vapor barrier, and installers should roll out a 6-mil poly sheet beneath pre-attached products on concrete. On above-grade wood subfloors where moisture is not a concern, pre-attached backing is typically sufficient and no additional underlayment is required.
Most laminate manufacturers specify a maximum underlayment thickness of 3mm to 4mm, and exceeding this limit voids the product warranty. The standard 2mm to 3mm range suits the majority of residential installations, and any product thicker than 3mm requires explicit confirmation against the flooring manufacturer's published specification before use.
Many combination foam underlayments are compatible with both LVP and laminate, but the key difference is that LVP with a built-in vapor barrier does not require an additional vapor barrier underlayment, while most laminate products do on concrete subfloors. Always verify the specific LVP product's instructions, since some manufacturers prohibit any additional underlayment beneath pre-attached versions.
Cork underlayment provides approximately R-3.2 per inch of thickness, which produces a measurable improvement in foot comfort over cold concrete slabs during winter months in northern climates. Standard foam delivers only R-0.5 at 3mm thickness, so rooms where floor comfort is a priority on concrete slabs benefit from the thermal improvement that cork or dense combination products provide.
A calcium chloride test or relative humidity probe test performed according to ASTM F1869 or F2170 standards provides reliable moisture data within 72 hours. Readings above 75% RH or 8 lb per 1,000 sq ft per 24 hours indicate a vapor barrier is required; readings below these thresholds allow the use of standard foam without integrated moisture protection on above-grade slabs.
In multi-story homes where reducing impact noise to lower floors is a priority, cork's IIC ratings of 62 to 70 versus foam's 50 to 55 represent a meaningful and perceptible acoustic difference that most occupants notice immediately. For single-story installations over a wood subfloor in a bedroom, the acoustic benefit is less significant, and standard combination foam provides adequate performance at considerably lower cost.
Most laminate manufacturers allow installation over existing single-layer resilient flooring such as sheet vinyl or self-stick tile, provided the surface is fully adhered, flat within 3/16 inch per 10 feet, and free of loose edges. The existing resilient layer counts toward the total stack height, so the additional underlayment thickness must keep the total assembly within the door clearance and transition strip height limits present in the room.
