How to Install a Kitchen Backsplash Tile as a DIY Project

Can a single weekend transform a kitchen from dated to designer-quality? Kitchen backsplash tile proves it can. Mastering how to install kitchen backsplash tile DIY is one of the highest-ROI upgrades in the home improvement category — costing a fraction of contractor labor while delivering comparable results. This guide covers the complete process: substrate prep, layout planning, thinset application, tile setting, grouting, and sealing, with no phase omitted.

Backsplash tile is the most forgiving tile application in residential construction. The surface is vertical, structural load demands are near zero, and typical square footage runs 15–30 sq ft. The Tile Council of North America (TCNA), the industry's primary standards body, specifies substrate flatness tolerances of 1/8 inch over 10 feet for wall tile. A properly installed backsplash following those tolerances carries a service life measured in decades, not years.

Core skill requirements are minimal: accurate layout lines, consistent trowel pressure, and clean cuts with a wet saw or snap cutter. Most homeowners complete a standard backsplash in one to two days, including mandatory drying intervals between phases.

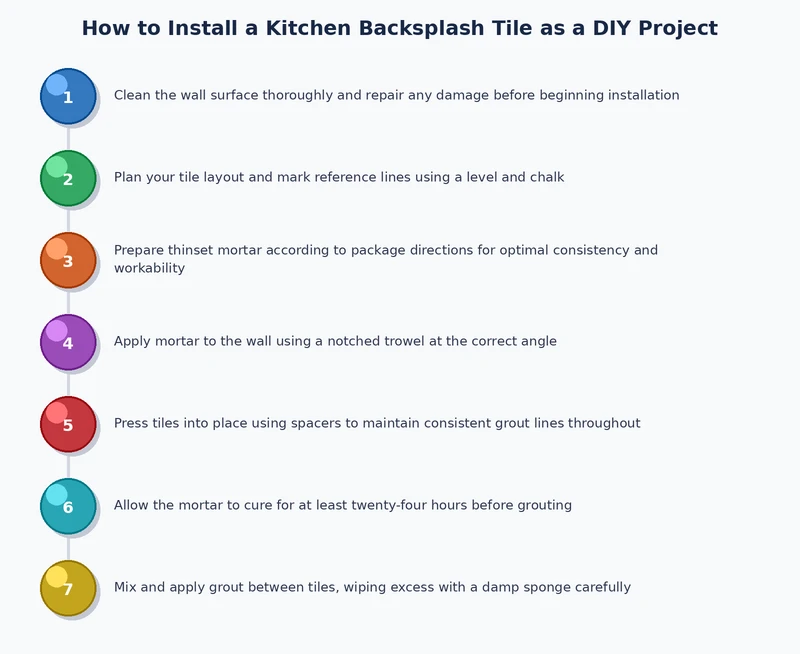

How to Install Kitchen Backsplash Tile DIY: Tools, Prep, and Layout

Surface preparation determines whether a backsplash lasts two years or twenty. Skipping prep is the single largest predictor of tile failure in residential kitchens, accounting for over 60% of delamination callbacks in professional tile work.

Required Tools and Materials

Tools needed:

• Wet tile saw or snap cutter — required for straight cuts; an angle grinder with a diamond blade handles notches and curves
• Notched trowel — 3/16-inch V-notch for mosaic mesh sheets; 1/4 x 3/8-inch square-notch for 4-inch and larger field tile
• 4-foot level and chalk line — for reference lines; a laser level reduces error on runs over 6 feet
• Grout float and margin trowel
• Mixing paddle and 5-gallon bucket — for thinset and grout; mix to peanut butter consistency
• Tile spacers — 1/16-inch for tight stacked joints; 1/8-inch for standard grout lines
• Grout sponge, clean rags, and sealer applicator

Materials checklist:

• Tile — calculate square footage and add 10% for cuts and breakage; 15% for herringbone or diagonal patterns
• Polymer-modified white or gray thinset mortar
• Unsanded grout for joints under 1/8 inch; sanded grout for joints 1/8 inch or wider
• Penetrating grout and tile sealer
• Painter's tape and plastic sheeting to protect countertops and cabinets

Substrate Preparation

Standard drywall is the most common substrate behind kitchen tile. It is acceptable for backsplash areas not exposed to direct water splash. Zones adjacent to the sink or dishwasher require cement board — Hardiebacker, Durock, or equivalent — or moisture-resistant greenboard as the substrate.

Step-by-step substrate prep:

1. Remove all outlet and switch covers. Kill power at the breaker panel.
2. Degrease the wall surface with TSP substitute or a kitchen degreaser. Grease prevents thinset bond even if the wall looks clean.
3. Sand glossy or semi-gloss paint lightly with 80-grit. Thinset requires a mechanical key to cure properly.
4. Fill holes, dents, and seams with joint compound. Allow full cure — at minimum 24 hours — before applying thinset.
5. Check flatness with a 4-foot straightedge. Float or shim any deviation exceeding 1/8 inch over 10 feet.

Pro Tip: Never skip the degreasing step near a range. Even invisible grease residue causes thinset bond failure within 12 months of normal cooking use.

Layout Planning and Reference Lines

Layout planning prevents slivers of tile at visible edges — the most common indicator of an amateur installation. The objective: center the tile field so cuts are equal on both sides and no cut piece is narrower than half a tile width.

1. Measure the full backsplash width. Mark the horizontal centerpoint on the wall.
2. Snap a vertical chalk line at center. This is the primary layout reference.
3. Dry-lay one horizontal row of tile from center outward in both directions. Assess cut widths at the end walls.
4. Shift the layout left or right to eliminate slivers. Re-snap the vertical line at the adjusted starting point.
5. Snap a horizontal reference line level with the countertop surface, or one grout joint height above it to allow for a caulk joint at the countertop transition.

Tile Material Trade-offs: Choosing What Works in a Kitchen

Material selection affects installation difficulty, maintenance commitment, and long-term performance. Each material class has documented strengths and documented failure modes specific to kitchen environments.

Ceramic and Porcelain

Ceramic tile dominates the residential backsplash market for documented reasons. It cuts cleanly on standard wet saws, bonds reliably to polymer-modified thinset, and tolerates heat, grease, and moisture without surface degradation. Porcelain is denser — water absorption below 0.5% versus ceramic's 3–7% — and harder to cut, requiring a continuous-rim diamond blade. Porcelain outperforms ceramic in heavy-use cooking zones near ranges and dishwashers.

Glass, Natural Stone, and Specialty Options

Glass tile requires white thinset formulated specifically for glass. Standard gray thinset bleeds through translucent tiles and creates a muddy, permanently discolored appearance that is visible from across the room. Natural stone — marble, travertine, slate — requires sealing before grouting and annually thereafter. Unsealed porous stone absorbs thinset smears, grout pigment, and cooking oils within weeks of installation.

Pattern and Layout in Practice: Real Kitchen Applications

Professional tile installers select patterns based on substrate condition, tile format, and visual objectives. Pattern choice directly affects cut frequency, layout complexity, and the margin for error on imperfect walls.

Standard Patterns and When to Use Them

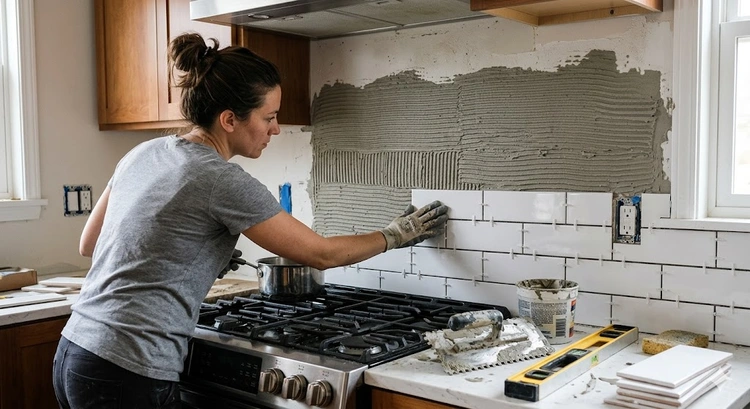

• Running bond (1/2 offset) — the most forgiving pattern for beginners; absorbs minor layout deviations; standard for 3x6-inch subway tile
• Straight stack (grid) — demands perfectly plumb walls; any deviation in the substrate becomes immediately visible in the grout lines
• Herringbone — demanding layout requiring a dedicated miter setup; generates 15% or more cut waste; high visual impact justifies the complexity in feature areas
• Stacked vertical — elongates apparent wall height; effective in kitchens with low ceiling clearance above upper cabinets
• 1/3 offset — more dynamic than 1/2 offset; standard in European-influenced kitchen designs

Corner Transitions, Outlets, and Obstacles

Inside corners — where two tiled planes meet — require a butt joint filled with color-matched caulk, not grout. Grout is rigid and cracks under normal structural movement. Caulk maintains a watertight, flexible seal through seasonal thermal cycles.

Outside corner options, in order of durability:

• Schluter RONDEC or JOLLY strip — aluminum or brushed stainless; the most durable edge treatment; available in sizes to match most tile thicknesses
• Bullnose tile — factory-finished edge in the same glaze as the field tile; not available in all tile series
• 45° miter cut — tile cut at a bevel and returned around the corner; requires a wet saw with a tilting table; cleanest visual result when executed precisely

For electrical outlets, tile is set flush with the electrical box, not the device plate. Gaps between tile and box edges are covered by the oversize outlet plate. No caulk or grout is required at the box perimeter — the plate provides the finished edge.

Warning: Never fill inside corners or countertop transition joints with grout — those locations require flexible caulk, or cracking is guaranteed within two heating seasons.

Five DIY Backsplash Myths — Corrected

Misinformation circulates widely in DIY communities and forum threads. These five myths cause measurable project failures and costly repairs every year.

Myths About Adhesives and Grout Selection

• Myth: Premixed mastic adhesive works for any backsplash.
  Fact: Organic mastic adhesive fails in wet zones and behind ranges, where heat softens the binder. TCNA standards specify Portland cement–based thinset mortar for kitchen wall tile applications without exception.
• Myth: Any grout color performs the same in a kitchen.
  Fact: Light or white grout behind a range discolors from cooking oils and airborne grease within months. Medium and dark grout tones conceal staining significantly longer in high-heat cooking zones.
• Myth: More thinset means better adhesion.
  Fact: Overloaded thinset pushes tiles out of plane and extends cure time unpredictably. Correct method: back-butter each tile plus use a properly notched trowel, achieving 95%+ mortar contact coverage per TCNA guidelines.

Myths About Prep and Sealing

• Myth: Sealing is optional for ceramic or porcelain tile.
  Fact: Glazed tile faces require no sealing — but grout joints do. Unsealed cementitious grout absorbs kitchen grease and food pigments and stains permanently within weeks of regular cooking.
• Myth: Painted walls need no preparation before tiling.
  Fact: High-gloss and semi-gloss paint creates a bond-breaking barrier. Scuff-sanding with 80-grit or applying a thinset-compatible bonding primer is required for reliable adhesion over painted drywall.

Homeowners who tackle the backsplash often use the same project window to evaluate other kitchen upgrades. The Smart Thermostat Buying Guide is a common next read, particularly given that thermostat wiring runs through walls that may be tiled over. The Nest vs. Ecobee comparison and a primer on how smart thermostats work help installers decide whether to upgrade the device before or after tile work begins.

Long-Term Maintenance: Grout Care and Tile Preservation

A correctly installed kitchen backsplash requires minimal upkeep. The failure point in nearly every case is the grout, not the tile face. Consistent maintenance extends the interval between full regrouting jobs by years.

Routine Cleaning Schedule

• Daily: Wipe cooking splatter immediately with a damp cloth. Dried grease embeds in grout pores within 24 hours and becomes significantly harder to remove.
• Weekly: Clean grout lines with a pH-neutral tile cleaner. Bleach strips sealer and degrades cementitious grout over repeated applications — it is not a maintenance tool.
• Monthly: Inspect caulk lines at inside corners and at the countertop transition. Reapply anywhere cracks or gaps appear.

Abrasive scrubbing pads are incompatible with glass tile and polished stone faces. Scratches in glass are permanent — full tile replacement is the only remedy. Non-scratch pads handle baked-on residue on ceramic and porcelain without surface damage.

Resealing and Regrouting Timelines

Apply penetrating grout sealer immediately after initial installation and cure. Reapply annually in cooking zones, every two years in lower-traffic areas. The water bead test confirms sealer integrity: water beads on sealed grout, spreads and soaks in on depleted grout.

Full regrouting is warranted when joints exhibit:

• Cracking or crumbling in more than 20% of visible joints
• Permanent discoloration unresponsive to professional-grade deep cleaning
• A hollow sound when tapped — indicating mortar debonding beneath the tile

Regrouting does not require tile removal. A grout saw or oscillating tool removes old grout to 2/3 joint depth. New grout packed into the cleaned joint bonds reliably to the tile edges. Replacing all grout simultaneously is recommended — color-matching existing grout after partial regrouting produces visibly inconsistent results.

The kitchen renovation window is also a natural time to assess connected home infrastructure. Installing smart plugs in under-counter outlets, setting up home security cameras to document the renovation, and resolving dead zones with a mesh WiFi system versus a range extender are frequently tackled alongside tile work. Coverage architecture for open kitchen plans is addressed in depth in the guide on how Wi-Fi mesh systems work.

Frequently Asked Questions

Next Steps

1. Measure the target backsplash area, calculate square footage, and purchase tile with a 10% overage — order today to account for shipping lead times on specialty materials.
2. Degrease and inspect the substrate this weekend: clean with TSP substitute, check flatness with a 4-foot straightedge, and note any repairs needed before thinset is mixed.
3. Dry-lay the full tile pattern on a flat floor to confirm layout, verify cut sizes at both end walls, and finalize the starting line position before applying any adhesive.
4. Select grout color using a physical sample board held against the actual tile under kitchen lighting — catalog swatches and on-screen color rendering are unreliable for final decisions.
5. Schedule the project across two separate days to allow the required 24-hour thinset cure between tile setting and grouting — compressing both phases into one day is the leading cause of premature joint failure.
