How Wi-Fi Mesh Systems Work and Whether You Need One

Nearly 20% of U.S. households report persistent Wi-Fi dead zones that a single router upgrade fails to fix. Understanding how wifi mesh systems work is the clearest path toward solving that problem without running Ethernet through walls or accepting second-rate coverage. Mesh networking replaces the single-point broadcast model with a coordinated fleet of nodes, each delivering full radio capability across the coverage zone. Shoppers browsing the tech and electronics category consistently rank mesh kits among the highest-impact home networking upgrades available today.

Traditional routers broadcast from a single point. Signal strength degrades with distance, wall density, and interference — progressively, not uniformly. Mesh nodes communicate over a dedicated backhaul channel, typically a separate 5 GHz band or, in tri-band systems, a third radio reserved exclusively for node-to-node traffic. Every client connects to the nearest node at near-peak throughput rather than receiving a weakened echo of a distant router.

Before committing to a purchase, it helps to map where mesh excels and where simpler — and cheaper — solutions outperform it. The sections below cover architecture, real-world trade-offs, common misconceptions, and the diagnostic steps experienced users rely on when things go wrong.

How Mesh Networks Are Built

Node Communication and Backhaul

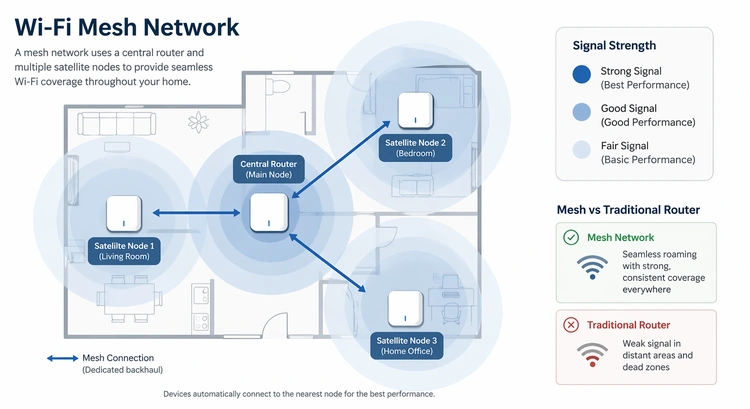

Mesh nodes use a self-organizing protocol to elect one gateway unit — the node connected directly to the modem — and route all WAN traffic through it. Secondary nodes extend coverage by relaying packets hop by hop. Two backhaul models dominate the consumer market:

• Wired backhaul: Ethernet cables connect nodes directly. Lowest latency, highest sustained throughput. Preferred for fixed installations where cable runs are feasible.
• Wireless backhaul: A dedicated radio band handles node-to-node traffic. In dual-band systems, one 5 GHz radio splits duty between backhaul and clients. In tri-band systems — including Wi-Fi 6E and Wi-Fi 7 designs — the 6 GHz band runs backhaul-only, leaving both legacy radios uncontested for clients.

Wireless range extenders lack a dedicated backhaul entirely — client traffic and relay traffic share the same radio, cutting throughput by roughly half per hop. For a direct side-by-side comparison, the analysis in Mesh WiFi System vs WiFi Range Extender covers the architectural differences in detail.

Band Steering and Fast Roaming

Band steering pushes clients toward the optimal frequency band automatically. 802.11r Fast BSS Transition allows clients to pre-authenticate with a neighboring node before dropping the current connection — cutting handoff latency from several hundred milliseconds down to under 50 ms. 802.11k and 802.11v extend this by enabling nodes to exchange neighbor reports and assist client transitions proactively, rather than waiting for a client's signal to degrade below threshold.

Mesh vs. Single Router: Honest Trade-offs

Where Mesh Outperforms

Where Mesh Falls Short

• Higher upfront cost than comparable single-router options.
• Wired backhaul — the best-performing configuration — still requires Ethernet runs through walls or floors.
• Vendor apps range from excellent to severely limited. Power users accustomed to CLI access or granular VLAN control often find consumer mesh systems frustratingly locked down.
• Wireless backhaul adds measurable latency per hop — typically 2–8 ms — that matters in competitive gaming scenarios. See How to Choose a Router for Gaming for context on what latency thresholds actually affect gameplay.

When Mesh Makes Sense — and When It Doesn't

Homes That Benefit Most

• Multi-story homes over 2,500 sq ft with signal-attenuating construction materials.
• Properties where modem entry points sit at one end of a long footprint.
• Households operating 20 or more simultaneous clients — streaming devices, smart speakers, security cameras, thermostats, smart plugs.
• Home offices requiring consistent throughput in rooms distant from the main router location.
• Users who need seamless roaming across the property without manually switching SSIDs.

Cases Where a Single Router Suffices

• Apartments under 1,000 sq ft with open floor plans and drywall construction.
• Households with fewer than 15 active clients in a single zone.
• Budget-constrained users where a single Wi-Fi 6 router delivers adequate coverage.
• Gaming-focused setups where one wired access point serves the primary use case.

Before purchasing a mesh kit, map actual signal strength room by room using a free app like WiFi Analyzer. A single strategically-placed access point often resolves a dead zone more cost-effectively than a full mesh system.

Mesh Network Myths Worth Ignoring

Speed Myths

• Myth: More nodes always means faster speeds. Each wireless hop through a node lacking wired backhaul cuts throughput by roughly 50%. Two wired nodes consistently outperform four nodes on wireless backhaul.
• Myth: Mesh equals Wi-Fi 6. Mesh is a topology, not a Wi-Fi generation. Wi-Fi 5 mesh systems still sell. Generation determines maximum throughput; mesh determines coverage architecture.
• Myth: Advertised AX speeds are real-world speeds. An AX6000 rating aggregates all radios under ideal lab conditions. Single-client real-world throughput rarely exceeds 30–40% of the combined spec under typical home conditions.

Coverage Myths

• Myth: One node per room guarantees coverage. Node density should follow RF attenuation maps, not room count. Overlapping nodes on the same channel create co-channel interference that degrades throughput network-wide.
• Myth: Mesh automatically eliminates all dead zones. Poor node placement creates mesh shadows — zones where two nodes transmit at equal but marginal signal levels, causing devices to ping-pong between nodes and sustain weak connections from both.

Diagnosing Common Mesh Network Problems

Node Placement Issues

Symptoms include frequent disconnects, slow speeds in isolated areas, and devices refusing to roam despite moving closer to a secondary node.

Diagnosis checklist:

1. Check node-to-node signal strength in the vendor app. Target –65 dBm or better for stable wireless backhaul.
2. Verify no two nodes are more than 30–40 ft apart through standard drywall. Concrete or brick walls halve effective range.
3. Confirm the gateway node connects to the modem via a short Ethernet cable — no wireless first hop from gateway to modem.
4. Identify interference sources: microwave ovens, 2.4 GHz cordless phones, and baby monitors all degrade the 2.4 GHz band shared with low-speed IoT clients.

Backhaul Congestion

Wireless backhaul saturates when multiple high-bandwidth clients run simultaneously — 4K streams, cloud backup jobs, and local NAS transfers competing on the same radio. For homes running a network-attached storage device alongside multiple streaming clients, wired backhaul is non-negotiable for sustained performance.

Remedies:

• Run Ethernet between nodes where feasible — even a single wired backhaul link to the farthest node relieves the wireless radio substantially.
• Enable QoS rules to deprioritize background backup traffic during peak hours.
• Upgrade to a tri-band or Wi-Fi 6E system with a dedicated 6 GHz backhaul channel if wired runs are genuinely impractical.

Optimization Tips from Seasoned Users

Hardware Placement

• Position nodes at chest height on open shelves — not on the floor, behind televisions, or inside enclosed entertainment centers.
• Place the gateway node as close to the geographic center of the coverage zone as the modem entry point allows.
• Avoid clustering multiple networking devices together. Heat from stacked hardware degrades radio performance over time.
• Run a short Cat6 patch cable from modem to gateway even if the modem and router are the same unit — it eliminates one wireless variable from troubleshooting.

Advanced Settings Worth Enabling

• MU-MIMO: Allows each node to serve multiple clients on parallel spatial streams simultaneously. Enable if the hardware supports it.
• BSS Coloring (Wi-Fi 6+): Reduces co-channel interference in dense RF environments by tagging each BSS with a unique color identifier, allowing receivers to discard foreign transmissions faster.
• IPv6: Many mesh apps disable IPv6 by default. Enabling it reduces NAT traversal overhead for compatible services and future-proofs the network.
• DHCP reservations: Assign fixed IPs to smart home devices. Consistent addressing simplifies firewall rules and pairs cleanly with smart plug automations and smart thermostat scheduling integrations.

According to the IEEE 802.11s standard, mesh networking protocols define self-forming and self-healing topologies — capabilities most consumer mesh systems implement in a simplified proprietary form optimized for ease of setup over technical flexibility.

Frequently Asked Questions

Next Steps

1. Run a room-by-room signal survey using a free app like WiFi Analyzer before buying anything — confirm whether a mesh kit or a single well-placed access point addresses the actual dead zone.
2. Measure the home's square footage and count active Wi-Fi clients; if both fall below 2,000 sq ft and 15 devices, evaluate whether a single Wi-Fi 6 router resolves the problem at lower cost.
3. If mesh is the right call, determine whether wired backhaul is achievable — even one Ethernet run to the farthest node dramatically improves sustained throughput.
4. After installation, verify node-to-node RSSI in the vendor app and adjust node positions until all backhaul links read –65 dBm or better.
5. Enable IPv6, MU-MIMO, BSS Coloring (Wi-Fi 6+ hardware), and DHCP reservations for IoT devices to maximize long-term network stability.
