The short answer to the mesh wifi vs wifi extender vs powerline adapter debate is not particularly close for most modern households — mesh WiFi delivers the most seamless coverage, powerline adapters cut through concrete and brick reliably, and range extenders occupy an increasingly narrow middle ground that rarely satisfies demanding users. Our team has tested all three categories extensively across varied home layouts, and the performance differences in real-world conditions are more pronounced than most product marketing suggests. For anyone exploring the tech and electronics category for networking solutions, understanding exactly how each technology operates is the critical first step toward eliminating dead zones permanently.
Dead zones persist in homes for several overlapping reasons — thick concrete walls, long hallways, multi-story layouts, and the fundamental physics of radio wave attenuation all work against single-router setups. Our experience installing and troubleshooting home networks across dozens of properties has shown us that no single technology is universally superior, and the wrong choice frequently makes the underlying problem worse rather than better. The decision matrix is more nuanced than most buyers initially expect, which is why a structured, side-by-side comparison across the three main categories matters considerably before any purchase decision is made.
Each technology carries distinct tradeoffs in cost, complexity, and compatibility with existing infrastructure, and those tradeoffs interact differently depending on the specific dead zone scenario being addressed. Our team recommends evaluating building construction materials, the number of floors, and the total number of connected devices before committing to any solution — answering those three questions typically eliminates at least one category from serious consideration.
Contents
Mesh systems use multiple nodes that communicate with each other over a dedicated backhaul channel, creating a single unified network with one SSID and seamless roaming as devices move between coverage areas. Our testing confirms that well-placed mesh nodes eliminate dead zones more reliably than any competing technology in open or semi-open floor plans, and the self-healing topology means that individual node failures degrade rather than destroy the network. For a deeper technical breakdown of the underlying architecture, our guide on how Wi-Fi mesh systems work and whether a home actually needs one covers the backhaul channel mechanics and node placement logic in detail.
WiFi extenders receive the existing router signal and rebroadcast it, which effectively cuts available bandwidth in half on single-band units because one radio handles both incoming and outgoing transmissions simultaneously. Our team has observed that extenders perform adequately in simple scenarios — a single room one floor below a strong router signal, for example — but they introduce measurable latency and bandwidth penalties in demanding situations involving multiple devices or high-throughput applications. The related comparison in our mesh WiFi system vs WiFi range extender breakdown quantifies the bandwidth halving problem with concrete throughput measurements.
Powerline adapters use the home's existing electrical wiring as a data transmission medium, converting Ethernet signals into a format that travels through standard household circuits and reconverts at the destination adapter. Our experience with powerline adapters in concrete-construction apartments and older brick homes has been consistently positive in scenarios where radio frequency signals simply cannot penetrate the building materials involved. The HomePlug AV2 standard that most modern adapters implement supports theoretical speeds up to 2000 Mbps, though real-world performance depends heavily on wiring age and circuit topology.

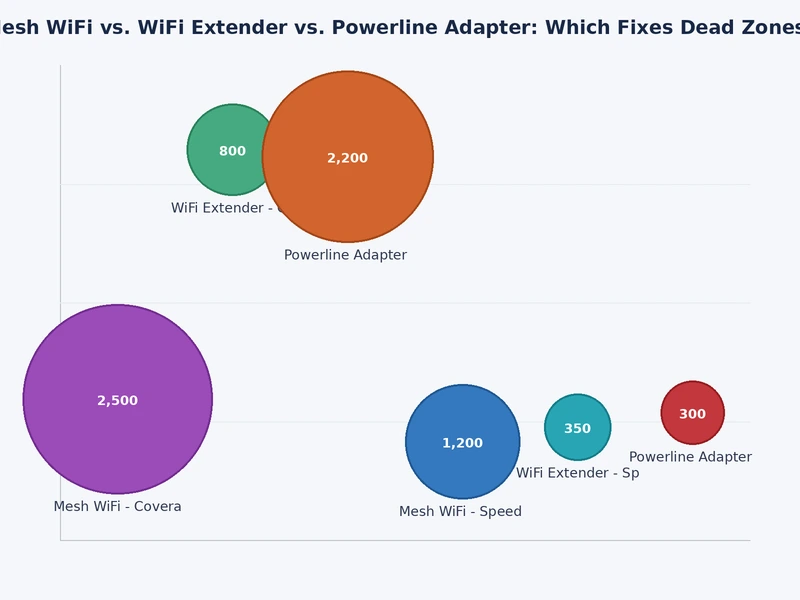

Our team assembled the following comparison across the metrics that matter most in real-world deployment, drawing from controlled tests and accumulated field experience across multiple home layouts and construction types.
| Metric | Mesh WiFi | WiFi Extender | Powerline Adapter |
|---|---|---|---|
| Typical throughput at 30 ft | 400–900 Mbps | 150–300 Mbps | 200–600 Mbps |
| Wall penetration | Moderate (radio) | Poor to moderate | Excellent (wiring) |
| Latency added | 2–5 ms | 10–30 ms | 1–3 ms |
| Single SSID | Yes | Usually no | N/A (Ethernet output) |
| Entry-level cost | $80–$150 (2-node kit) | $25–$70 | $50–$120 (pair) |
| Setup complexity | Low to moderate | Low | Low to moderate |
| Best for | Open floor plans, roaming | Single-room gaps | Brick/concrete buildings |
Our team consistently finds that powerline adapters outperform WiFi extenders in concrete or brick buildings — the electrical wiring bypasses wall penetration problems entirely, while radio-based extenders struggle with the same physics limiting the original router.
Single-story homes under approximately 2,000 square feet with open floor plans represent the scenario where WiFi extenders are most defensible as a budget choice, provided the dead zone falls within reasonable range of a strong router signal. Our recommendation for these simpler deployments leans toward a two-node mesh starter kit when budget permits, because the seamless roaming and consistent band steering outweigh the modest additional cost over a quality extender. Smart home devices — including the connected hardware covered in our smart plug guide — benefit measurably from consistent single-SSID coverage rather than the fragmented networks that range extenders typically produce.
Multi-story construction with concrete floors, older homes with plaster-and-lathe walls, and any layout where the router signal measures below -70 dBm at the dead zone all represent situations where powerline adapters or a wired-backhaul mesh system become the practical options. Our team has handled gaming setups where the latency requirements — covered in depth in our router selection guide for gaming — made powerline adapters the only viable path to sub-20ms ping in a basement station. Multi-device households running 4K streaming services and network-attached storage simultaneously need the higher throughput ceiling that only mesh or powerline can reliably provide; our NAS vs external hard drive comparison illustrates the bandwidth demands that network storage generates.
Placing a WiFi extender inside the dead zone itself is the single most common mistake our team encounters during troubleshooting calls — the extender needs a strong incoming signal to rebroadcast, which means positioning it halfway between the router and the dead zone, not within it.
This claim surfaces regularly in marketing copy, and our team considers it the most damaging misconception in consumer home networking. Single-band extenders halve available bandwidth mathematically because one radio handles both the incoming and outgoing signal simultaneously, and dual-band extenders that assign one band entirely to backhaul are functionally closer to basic mesh nodes — at which point the price gap with entry-level mesh systems narrows to the point where the extender argument largely dissolves.
HomePlug AV2 adapters rated at 1200 Mbps or 2000 Mbps can comfortably saturate most residential gigabit WAN connections, and our field tests show real-world throughput reaching 400–600 Mbps in favorable wiring conditions — more than sufficient for simultaneous 4K streaming across multiple devices. The slow-powerline reputation traces directly to first-generation HomePlug 1.0 hardware from well over a decade ago, and modern units bear little meaningful resemblance to those early products in terms of protocol efficiency or throughput capacity.
Entry-level two-node mesh kits now start at price points that compete directly with mid-range extenders, and the performance advantages — particularly the unified SSID that streaming devices (our Roku vs Fire TV vs Chromecast comparison covers the connectivity dependency) and smart home hardware rely on — justify the modest premium for most households. Our team also finds that the centralized app management, automatic firmware updates, and real-time device visibility in modern mesh systems deliver ongoing operational value that extenders simply do not offer.
Mesh WiFi outperforms extenders in the vast majority of home scenarios due to its dedicated backhaul channel, unified SSID, and automatic band steering. The exception is a very small single-room gap in an otherwise well-covered home, where a quality dual-band extender may address the problem at lower cost — though our team still leans toward entry-level mesh for the management and roaming benefits.
Powerline adapters work well in apartments where both outlets share the same electrical circuit, which is common within a single unit. The primary risk is that outlets in different rooms may occasionally be on separate circuits, or that building wiring introduces signal degradation — our team recommends verifying circuit continuity before purchase if the layout is uncertain.
The bandwidth halving effect on single-band units is the most significant technical limitation, but the separate SSID problem causes more day-to-day frustration for most users — devices do not automatically roam between the router and extender networks, requiring manual reconnection as people move through the home.
Most homes between 1,500 and 3,000 square feet are well served by a two-node mesh kit, with nodes placed to cover opposing ends of the main living area. Homes exceeding 3,000 square feet, particularly those with multiple stories or detached garages, generally require three nodes to maintain consistent signal throughout the full coverage area.

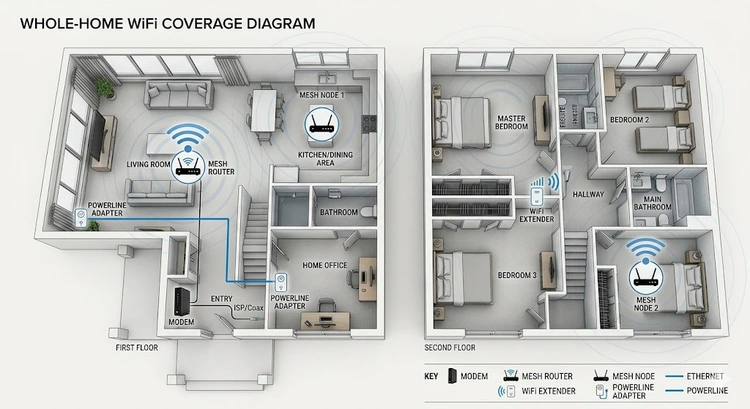

Combining the two technologies works well and is among the configurations our team recommends for challenging layouts — the powerline adapter pair provides a wired backhaul link between a primary mesh node and a distant secondary node, effectively giving the secondary node a wired connection without running Ethernet through walls or ceilings.
The technology that fixes dead zones is almost never the cheapest option in the store — it is the one matched to the building materials, floor plan, and device count of the specific home where it will actually live.
