What separates a garage that works flawlessly from one that grinds, shudders, and stalls at the worst possible moment? The answer traces back to a single decision: knowing how to choose a garage door opener that matches your door weight, your noise tolerance, your budget, and your smart-home setup. This guide, part of our home improvement coverage at JimBouton, walks you through every variable — drive types, horsepower ratings, safety features, and the full installation sequence. You will not need a contractor. You will need this guide and two or three hours of focused work.
Garage door openers have changed dramatically. A unit sold today often includes battery backup, Wi-Fi connectivity, motion-activated lighting, and compatibility with voice assistants. That range of features is useful — but it also creates confusion for anyone standing in a hardware store aisle trying to decide between five different boxes. The goal of this guide is to remove that confusion entirely.
By the time you finish reading, you will understand the mechanical differences between drive types, know which horsepower rating your door actually requires, and have a clear, step-by-step path to a safe, professional-quality installation. The process is more straightforward than most homeowners expect.
Contents

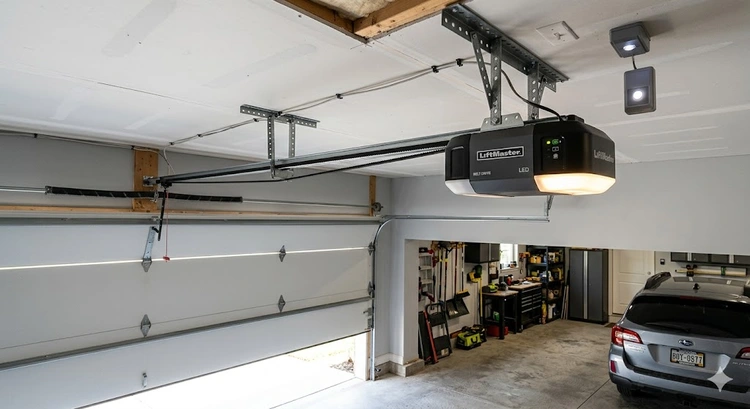

A garage door opener is an electromechanical device. It uses a motor to drive a trolley — a sliding carriage — along a rail mounted to the garage ceiling. The trolley connects to the door via a curved metal arm. When the motor runs forward, the trolley pulls the arm upward and lifts the door along its tracks. When the motor reverses, the door descends.
Every opener includes a force-detection system that stops and reverses the door if it encounters an obstruction. The U.S. Consumer Product Safety Commission mandates that all residential garage door openers sold since 1993 include this auto-reverse feature. Newer units add a photoelectric sensor (an invisible infrared light beam stretched across the door opening) as a secondary safety layer. Understanding these components helps you test them correctly after installation.
The drive system is the single most important variable in your purchase decision. Four primary types exist in the residential market:
Each type carries specific trade-offs in price, noise, and upkeep. The next section examines those trade-offs in detail so you can make a confident, well-informed choice.
The chain drive is the workhorse of the garage door opener market. It handles heavy doors reliably, it is widely available at every major home improvement retailer, and replacement parts are easy to source. The significant downside is noise. A chain drive produces a distinct rattling sound that travels through the garage ceiling and into any living space directly above. If your garage is detached or shares no walls with bedrooms, noise is not a meaningful concern, and a chain drive delivers excellent long-term value.
A belt drive costs more — typically $50 to $100 above an equivalent chain drive model — but operates at a fraction of the sound level. If your garage is attached to your home and sits beneath a bedroom or home office, that premium pays for itself in sleep quality and reduced daily distraction. Most belt drives use a reinforced rubber belt engineered to last as long as the motor itself with virtually no maintenance requirements.
Pro tip: If your garage is attached to your home and sits directly beneath a bedroom, always select a belt drive or direct drive — the noise reduction is permanent and immediately noticeable from day one.
Screw drives occupy a practical middle ground. They operate more quietly than chain drives and require minimal lubrication. However, they are sensitive to temperature extremes. In climates with severe winters or intense summer heat, the threaded steel rod expands and contracts enough to produce sluggish or inconsistent performance. In moderate climates, a screw drive is a durable, low-maintenance option worth considering.
Direct drive units represent the premium tier. The motor itself travels along the rail, making the motor the only moving component in the entire system. This design eliminates virtually all vibration and mechanical noise. Direct drive openers typically carry lifetime motor warranties. The initial purchase price is higher, but the long-term value — particularly for garages attached to living spaces — is compelling.

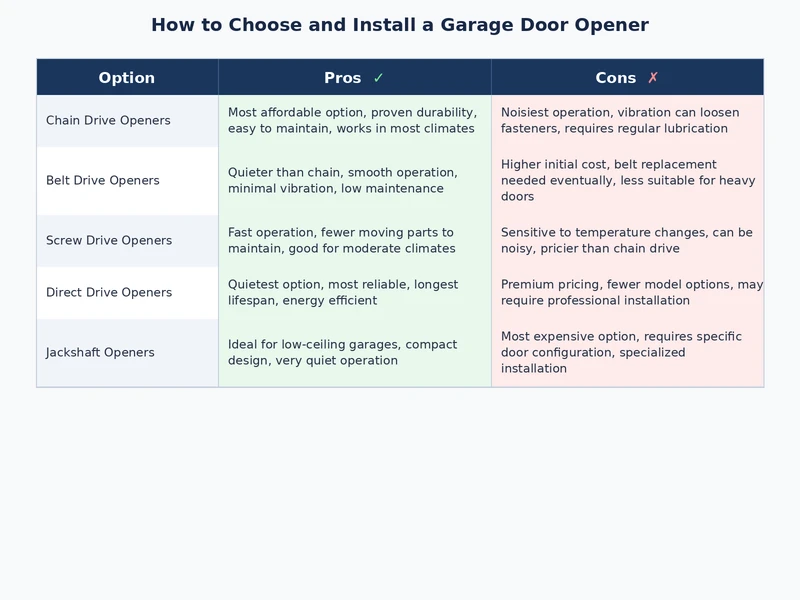

| Drive Type | Noise Level | Typical Cost | Maintenance | Best For |
|---|---|---|---|---|
| Chain Drive | High | $150–$250 | Annual lubrication | Detached garages, heavy or oversized doors |
| Belt Drive | Low | $200–$350 | Minimal | Attached garages, bedrooms or offices above |
| Screw Drive | Medium | $175–$300 | Low (temperature-sensitive) | Moderate climates, straightforward installations |
| Direct Drive | Very Low | $250–$450 | Nearly none | Attached garages, long-term ownership, premium installs |
Beyond drive type, pay close attention to horsepower (HP). A standard single-car steel door requires ½ HP. A double-car door, a solid wood door, or a heavily insulated steel door requires ¾ HP or 1 HP. Undersizing the motor causes premature wear and erratic, frustrating performance. When in doubt, size up — an overpowered motor runs cool and lasts longer.
Smart features are the final purchasing variable. Modern openers connect to your home Wi-Fi network and allow you to open, close, and monitor your garage door from a smartphone app. This pairs naturally with other smart home upgrades. If you have already worked through comparisons like the Nest vs. Ecobee smart thermostat review, you understand how interconnected home automation systems can become. A smart opener integrates with those same platforms. If you are building a connected home for the first time, the smart thermostat buying guide provides useful context on how these devices share your home network and communicate with each other.
Gathering every tool before you start prevents costly mid-installation delays. You will need the following:
The scope of this project is comparable to other methodical DIY tasks. If you have successfully completed something like a kitchen backsplash tile installation, you already have the patience and precision this job demands. Garage door opener installation is more mechanical than decorative, but the careful, step-by-step approach is identical.
Every garage door opener kit ships with the motor unit, the rail sections, the trolley, the drive component (chain, belt, or rod), the ceiling bracket, a J-bolt, lag screws, the curved door arm, the wall button, the photoelectric safety sensors, and at least one remote control. Premium kits include a numeric keypad for exterior entry. Read the parts manifest in the manual before you open any individual packaging — confirm every component is present before proceeding.
Warning: Never begin installation without confirming your garage ceiling height meets the minimum headroom requirement listed in the manual — most openers require at least 10 inches of clearance above the highest point the door reaches during operation.
Installation begins on the floor, not the ceiling. Lay the rail sections out in sequence on the garage floor and connect them according to the manufacturer's exploded diagram. Thread the drive component through the rail, attach the trolley, and connect the drive to the motor unit. Adjust tension to the specification printed in the manual — most chain and belt drives include a torque value or visual tension indicator. Improperly tensioned drive components are the leading cause of premature opener failure and irregular door movement.
Once the rail assembly is complete, attach the pulley bracket to the front end of the rail if your model requires one. The assembly now resembles a long mechanical arm with a motor at one end and a mounting bracket at the other. Set it aside on the floor while you prepare the ceiling anchor points.
Locate the header bracket position: the point on the wall directly above the vertical center of the garage door opening. Mark it, drill pilot holes into solid framing — never into drywall alone — and bolt the header bracket securely in place. With a helper, lift the motor unit and connect the rail's front bracket to the header bracket. Hang the motor unit from the ceiling using the provided lag screws and the safety chain or strap included in the kit. The unit must be level. Confirm this with your level before tightening any fastener permanently.
Connect the curved door arm from the trolley to the door bracket on the door panel. Plug the motor unit into its ceiling outlet. Wire the wall button using the two-wire low-voltage connection described in your manual — this step requires no electrician and carries no shock risk. Mount the photoelectric sensors at the base of the door tracks, 4 to 6 inches off the ground, facing each other directly across the opening. Both sensor indicator lights must display as solid — not blinking — once properly aligned.
Smart opener models require one additional step: connecting the unit to your home Wi-Fi network via the manufacturer's companion app. A strong, stable signal in the garage is non-negotiable for reliable operation. If your garage sits in a coverage gap, our explanation of how Wi-Fi mesh systems work details the most effective strategies for extending dependable wireless coverage to problematic spaces.
Before you use the opener normally, complete these mandatory safety tests without exception:
These four tests take under ten minutes. Skipping them is not a reasonable option — a door that fails to auto-reverse is a direct safety hazard for children, pets, and vehicles.
A garage door opener that receives basic, consistent maintenance reliably lasts 10 to 15 years. Follow this schedule to protect your investment:
Approaching home technology with a systematic, spec-first mindset serves you well across every category. Evaluating a garage door opener follows the same framework as reading a thorough home security camera buying guide: match specifications to your actual use case, prioritize build quality over feature excess, and purchase from a manufacturer with accessible warranty and parts support.
This is the most frequently reported problem after a new installation. Three causes account for the majority of cases:
Work through this diagnostic sequence before concluding that the opener itself has failed:
If none of these steps restore function, the logic board inside the motor unit may have failed. Logic board replacements are available directly from most major manufacturers and cost $30 to $80 — a fraction of the cost of a full unit replacement.
Match horsepower to your door's weight and dimensions. A standard single-car steel door requires ½ HP. A double-car door, a solid wood door, or a heavily insulated steel door requires ¾ HP to 1 HP. When uncertain, choose the higher rating — an overpowered motor runs cool and lasts longer, while an underpowered motor wears out rapidly and performs inconsistently.
Yes. Garage door openers use low-voltage wiring for the wall button and sensors — no high-voltage electrical work is required. The motor unit plugs directly into a standard 120-volt outlet. If your garage does not have a ceiling outlet in the correct position, have one installed by a licensed electrician before beginning the rest of the installation.
Most homeowners complete the installation in two to four hours on their first attempt. Enlisting a helper to hold the motor unit steady while you secure the ceiling mounts reduces the time and the physical difficulty considerably. Reading the entire instruction manual before touching any components is the single best way to prevent time-consuming backtracking.
A jackshaft opener (also called a wall-mount opener) mounts on the wall beside the door rather than on the ceiling. It drives the door by rotating the torsion spring (the horizontal spring above the door) directly. This design frees up ceiling space for storage and functions well in garages with low ceilings, tall vehicles, or unusual overhead obstructions that make ceiling-mounted rail systems impractical.
The right garage door opener is not the most expensive one on the shelf — it is the one that fits your specific door, your home, and your daily routine, installed correctly and tested thoroughly the first time.
