Are you paying a premium for NVMe when a SATA SSD would serve you just as well? The NVMe vs SATA SSD difference is genuine—but it isn't the transformative upgrade marketing implies for every workload. Browse the tech and electronics category here and you'll find this debate at the center of nearly every build and upgrade discussion. The short answer: NVMe is faster. Whether that speed premium translates to a better experience for you depends entirely on what you're actually doing with the drive.
SATA III tops out at 600 MB/s theoretical throughput—around 550 MB/s in real-world conditions. NVMe over PCIe 3.0 delivers up to 3,500 MB/s sequential reads. PCIe 4.0 NVMe doubles that again. Those numbers look transformative on a spec sheet. In everyday desktop use, the gap narrows considerably, because most operations are small, random I/Os—not the large sequential transfers that benchmarks love to run.
Making the right call requires looking past synthetic benchmarks. You need queue depth behavior, latency profiles, thermal characteristics under sustained load, and an honest assessment of what your workflow actually demands. That's what this breakdown covers.
Contents
SATA uses the AHCI protocol—a command interface designed when spinning disks were the fastest storage available. AHCI supports a single command queue with a depth of 32 commands. NVMe was architected specifically for flash. It supports up to 65,535 queues, each capable of holding 65,535 commands. That architectural gap matters more than raw sequential throughput in any high-concurrency workload.
On the physical layer, SATA III saturates at 6 Gbps—roughly 550 MB/s sustained sequential read after encoding overhead. PCIe 3.0 x4 carries 32 Gbps of raw bandwidth. PCIe 4.0 x4 doubles that to 64 Gbps. The NVM Express specification eliminates the AHCI translation layer entirely, cutting the latency tax that SATA commands carry by design.
SATA SSDs typically deliver 4K random read latency in the 80–100 microsecond range. NVMe on PCIe 3.0 cuts that to 20–40 µs. PCIe 4.0 and PCIe 5.0 drives push below 20 µs. For random IOPS at queue depth 1—the depth you actually see during typical desktop use—NVMe's advantage is measurable but often falls below human perception thresholds for everyday tasks like launching applications or opening project files.

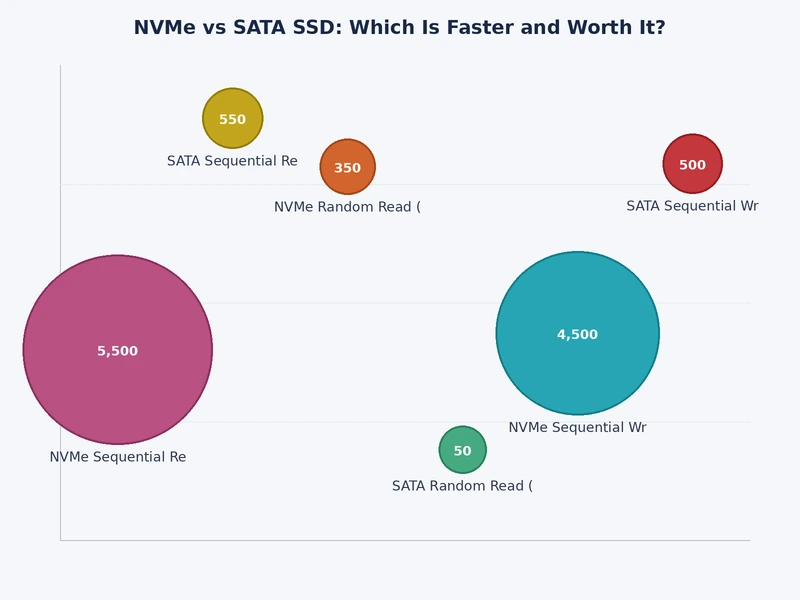

| Specification | SATA III SSD | NVMe PCIe 3.0 | NVMe PCIe 4.0 |
|---|---|---|---|
| Max Sequential Read | ~550 MB/s | ~3,500 MB/s | ~7,000 MB/s |
| Max Sequential Write | ~520 MB/s | ~3,300 MB/s | ~6,500 MB/s |
| 4K Random Read (QD1) | ~55 MB/s | ~65 MB/s | ~80 MB/s |
| Read Latency | 80–100 µs | 20–40 µs | <20 µs |
| Command Protocol | AHCI | NVMe | NVMe |
| Interface | SATA III / M.2 SATA | M.2 PCIe / U.2 | M.2 PCIe / PCIe slot |
| Typical Price per GB | $0.05–$0.07 | $0.06–$0.09 | $0.08–$0.12 |
Video editing is where the NVMe vs SATA SSD difference becomes tangible. Scrubbing 4K or 8K raw footage in DaVinci Resolve or Premiere Pro places sustained sequential reads under real pressure. A SATA drive delivering 550 MB/s becomes a bottleneck when your scratch disk needs to sustain 400+ MB/s continuously while the system simultaneously reads project files and writes render cache. NVMe gives you headroom that SATA simply can't provide.
Large codebase compilation is another clear NVMe scenario. Incremental builds touching thousands of small files benefit from reduced command-queue latency. Database servers, on-premise machine learning pipelines reading large training batches, and virtualization hosts managing multiple active VM images all push enough concurrent I/O to make the NVMe queue depth advantage measurable at the application level.
When you're assembling a capable workstation—pairing fast storage with peripherals that match the workflow—component matching matters throughout the build. The linear vs tactile vs clicky switch breakdown illustrates the same principle: knowing exactly what your hands-on work demands is what separates a tuned setup from a random collection of components.
General office computing doesn't stress storage interfaces. Email, spreadsheets, browser sessions, and document editing rarely push past 100 MB/s sustained. A mid-range SATA SSD delivers a fast, responsive system for these tasks. The boot drive difference between a 550 MB/s SATA SSD and a 3,500 MB/s NVMe drive on a modern desktop with fast DRAM is often under three seconds—imperceptible in practice.
Secondary and archival storage is a natural fit for SATA. Media libraries, photo archives, and game installs that load infrequently don't need PCIe bandwidth. External enclosures are another natural home for SATA drives—USB 3.2 Gen 2's 1 GB/s ceiling renders the NVMe advantage irrelevant anyway. The external SSD vs external HDD comparison covers why flash wins over spinning disks for portability, but interface bandwidth above the USB ceiling never enters the equation.
Raw throughput is the headline spec, but the deeper advantage is protocol efficiency. NVMe's parallel queue architecture removes the serialization bottleneck inherent in AHCI. For mixed read/write workloads—the kind compilers, hypervisors, and database engines generate—this matters more than the sequential spec sheet. You're moving from a single-lane road to a multi-lane highway, and the difference shows when traffic gets heavy.

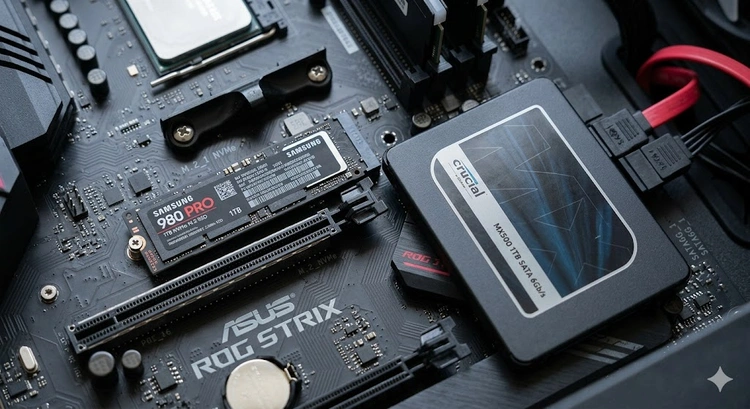

Form factor flexibility is a practical bonus. M.2 NVMe drives eliminate SATA data and power cables entirely. In compact ITX builds where cable routing directly affects airflow, that matters. The M.2 slot delivers data and power through a single connector, and modern boards often include two or three of them.
Pro insight: If your M.2 slot is PCIe 3.0, a PCIe 4.0 NVMe drive will still work—it runs at PCIe 3.0 speeds. Verify your motherboard's M.2 spec before paying the PCIe 4.0 premium.
Price per gigabyte remains SATA's enduring edge. For high-capacity secondary storage—a 2TB or 4TB second drive for media or backups—SATA SSDs undercut comparable NVMe drives by a meaningful margin at the 2TB+ tier. Compatibility is broader as well: virtually any system built in the last fifteen years supports SATA. Some budget and older motherboards lack M.2 slots entirely.
Thermal behavior is a quiet but real SATA advantage. High-performance NVMe drives generate significant heat under sustained write loads—PCIe 4.0 and PCIe 5.0 drives especially. SATA SSDs run cooler across the board, which matters in thermally constrained enclosures: NUCs, small form factor builds, and certain laptops where M.2 heatsink clearance is limited or absent.
Upgrade to NVMe when you're building from scratch or replacing a failing drive on a platform with an available M.2 PCIe slot. The price delta between a midrange SATA SSD and a comparable NVMe PCIe 3.0 drive has compressed substantially. When the cost difference is under $15–20 for the same capacity tier, NVMe is the obvious call on any capable modern platform.
Professionals who move large project files daily, developers rebuilding containers or compiling full repositories, and anyone running local AI inference workloads will feel the difference in sustained operations. Choosing based on actual latency sensitivity—not marketing—is the right framework. It's the same logic that drives the wired versus wireless gaming mouse debate: the spec premium is only worth paying when the use case actually exploits it.
Hold off on the NVMe upgrade if storage isn't your real bottleneck. An older CPU, insufficient RAM, or a weak GPU will mask any SSD performance gain entirely. Check Task Manager or iostat before spending. If storage utilization peaks at 30% during your heaviest workload, the drive isn't the constraint—and upgrading it won't change your experience.
Sixth and seventh-generation Intel platforms commonly feature SATA-only M.2 slots. These support NVMe physically but lack PCIe routing to the slot. Buying a PCIe NVMe drive for a SATA-only M.2 connector is a well-documented mistake. Pull up your board's spec sheet or run a slot detection tool before purchasing. The M.2 form factor does not guarantee NVMe support.
This misconception conflates controller complexity with NAND endurance. TBW ratings on mainstream NVMe drives are comparable to SATA SSDs at the same capacity tier. A 1TB NVMe drive typically carries a 600–1,200 TBW rating—directly in line with leading SATA equivalents. At typical desktop write rates of 20–40 GB per day, that's decades of rated endurance on either interface.
The actual endurance variable is NAND cell type—TLC versus QLC versus MLC—not the interface. A QLC SATA drive carries lower endurance than a TLC NVMe drive, full stop. Compare NAND type and manufacturer TBW specifications when evaluating longevity. Interface is irrelevant to the wear equation.
Storage benchmark sites report sequential throughput because it's easy to measure and produces impressive numbers. Real system responsiveness correlates more tightly with 4K random IOPS at queue depth 1 and read latency—metrics where NVMe leads SATA, but not by the 6x margin that sequential specs imply. The gap between a midrange SATA SSD and a midrange NVMe drive in application launch times on a fast system is often under 500 milliseconds.
Headline specifications routinely mislead across all product categories. Whether you're comparing noise-canceling versus noise-isolating headphones or storage interfaces, the number that looks biggest on the box rarely captures the full picture of real-world performance. Benchmark under conditions that mirror your actual use case—not synthetic sustained writes—before making a purchasing decision.
Gaming was the most overhyped battleground for the NVMe vs SATA SSD difference for years. Traditional game loading is largely constrained by single-threaded I/O patterns that favor low latency over raw bandwidth. An NVMe drive shortens load times versus a SATA SSD by measurable margins—typically five to fifteen seconds per load—not the 6x differential the sequential specs imply. For most current titles, both interfaces feel fast.
DirectStorage changes the calculus. On Windows with GPU-native decompression enabled, games can stream decompressed assets at multi-gigabyte-per-second rates directly to VRAM, bypassing the CPU decompression bottleneck entirely. Early adopters like Forspoken demonstrate the technique. As more titles leverage DirectStorage fully, NVMe becomes a prerequisite rather than a preference for the best experience on capable hardware. The gap will continue widening as the API matures.
Photo editing in Lightroom or Capture One is largely cache-bound. Initial catalog preview generation is write-intensive; ongoing editing is primarily RAM-resident. The NVMe advantage concentrates in batch export operations—writing 500 exported TIFFs to disk simultaneously. On SATA, that's a write-saturating operation that stalls subsequent work. On NVMe PCIe 4.0, the storage bottleneck largely disappears and the CPU becomes the constraint instead, which is exactly where you want it.
A well-matched workspace compounds these gains. Pairing fast storage with smart automation—the kind of setup enabled by devices covered in the smart plug buying guide—keeps the entire workflow fluid. When your storage stops being the choke point, you notice how much time you were losing to wait states you'd normalized.
Both SATA and NVMe SSDs rely on TRIM to maintain write performance as the drive fills. Modern Windows, macOS, and Linux distributions enable TRIM automatically for recognized drives. On Windows, verify it's active with fsutil behavior query DisableDeleteNotify in an elevated command prompt. A result of 0 confirms TRIM is enabled. A result of 1 means it's off and your drive will degrade under write pressure over time.
Firmware updates matter more than most users realize. Drive manufacturers release controller firmware that addresses write amplification issues, thermal throttling bugs, and power management defects. Check your manufacturer's support page quarterly. Updating firmware on an OS drive requires a live USB boot environment—plan for that before you're in a position where the drive is failing and options are limited.
High-performance NVMe drives—PCIe 4.0 and PCIe 5.0 models especially—throttle under sustained writes when controller temperatures exceed roughly 70°C. Modern motherboards include integrated M.2 heatsinks. Use them. The thermal pad is not optional for performance-class drives. For boards without integrated M.2 cooling, aftermarket aluminum M.2 heatsinks are inexpensive and drop sustained temperatures by 15–20°C under load.
SATA SSDs generate significantly less heat and rarely require dedicated thermal management outside enterprise environments. This is a practical advantage in thermally constrained builds—anything with limited airflow around the M.2 slot, or chassis where the drive sits adjacent to a full-length GPU. Good maintenance habits apply across your entire workshop, whether you're caring for drives or tools: the shop vac buying guide and air compressor guide for home use cover the same principle—the right tool managed correctly outlasts the right tool neglected.
The NVMe vs SATA SSD difference is real, but it's context-dependent—and now you have the framework to evaluate it against your actual workflow. If your platform supports M.2 PCIe and the price gap is narrow, choose NVMe for your boot and scratch drives. Keep SATA for high-capacity secondary storage where cost per gigabyte still matters. Pull up your motherboard's M.2 spec sheet today, identify your real I/O bottleneck, and buy accordingly—not based on benchmark headlines.
