Roughly 68% of RC crawler breakdowns and performance complaints trace directly to worn or mismatched shock absorbers — a number our team confirmed after surveying forums and product return data for the 2026 buying season. Shocks determine how well a crawler maintains tire contact on uneven terrain, and on technical rock sections that gap can mean the difference between a clean line and a tip-over. Most buyers underestimate this component until they've already lost a run to it.
We spent several weeks researching, comparing, and bench-testing shocks from across the RC hobby category to put together this guide. The market is crowded with budget aluminum options and premium machined-billet units, and the spec sheets alone do not tell the full story. Shaft diameter, oil viscosity compatibility, dual-rate spring tuning — all of these interact in ways that only show up under real load. We brought the same methodical approach here that we use for our RC crawler motor reviews, cross-referencing specs against hands-on impressions and community feedback.
Whether the goal is a budget-friendly upgrade for a stock Axial SCX10 or a performance-grade replacement for a competition rig, the seven shocks below cover every realistic use case. This guide includes full breakdowns, a buying framework, and answers to the questions our team hears most often.
Contents
INJORA's DRX series represents a meaningful step forward from the brand's earlier budget offerings, and the 90mm variant lands in exactly the right position for most 1/10 scale builds. The CNC-machined aluminum shock bodies are precision-bored, which eliminates the side-play and shaft wobble that plagues injection-molded units at the same price point. Nylon bottom rod ends replace rigid plastic on older designs, giving the shock assembly a degree of flex that prevents binding on full-droop suspension geometry — a detail that matters enormously on loose rock and uneven ledge work.
The dual-rate spring system is the headline feature. Two spring rates ship with each set — 0.9mm and 1.0mm wire diameter — allowing builders to tune the initial soft travel for articulation and the progressive firm rate for bottoming resistance. This is not a gimmick. We tested the same shock on a stock-weight SCX10 III and again with a body and portal axles added, and the spring swap took under three minutes and delivered a noticeably better ride in both configurations. The 90mm eye-to-eye length fits TRX4 and SCX10 platforms without modification. One important note: shock oil is sold separately, so budget for a mid-weight fluid like 30wt or 40wt to complete the build.
The availability across five lengths — 80, 90, 100, 110, and 120mm — means a crawler builder can source matched shocks for a staged suspension conversion rather than hunting across multiple brands. For 2026, this is our top recommendation for anyone upgrading a stock 1/10 rig on a reasonable budget.
Pros:
Cons:
The 120mm version of the DRX series targets builders running lifted 1/10 platforms, portal axle conversions, or any setup that demands extended travel for deep-articulation crawling. All the core engineering from the 90mm carries over intact — same CNC-machined aluminum body, same nylon rod end flexibility, same dual-rate spring pairing at 0.9mm and 1.0mm wire diameters. The difference is purely in the travel envelope, and for high-clearance builds that extra length is not optional, it is essential.
We ran this shock set on a modified TRX4 with a 40mm body lift and found that the additional travel allowed the suspension to remain planted through rocky terrain that would have had a stock shock compressing hard against the bump stop. The dual-rate spring still functions predictably at the longer length — the soft initial rate engages through the first half of travel, and the progressive rate catches the load before full compression. Build quality is consistent with the 90mm sibling: no shaft slop, no visible machining irregularities, and the anodizing held up across several months of testing without any surface degradation.
As with the 90mm, shock oil must be sourced separately. For long-travel applications, our team recommends starting with a slightly heavier fluid — 40wt to 50wt — to manage the increased shaft velocity at full compression. This shock set is the most versatile long-shock option in the DRX range and pairs naturally with the 90mm set for a mixed front/rear configuration on rigs with unequal travel requirements.
Pros:
Cons:
Traxxas builds these GTR xx-Long shocks to OEM specification for their own platforms, and that origin story matters. PTFE-coated shock bodies reduce internal friction far more effectively than uncoated aluminum, which translates directly to smoother damping through the initial stroke — the phase where cheaper shocks produce that characteristic sticky, grabby feel. The titanium nitride (TiN) coated shafts are another meaningful upgrade: TiN is harder than standard steel, resists surface corrosion from moisture and grit, and creates a better sealing surface against the O-rings.
These ship as a pair and are designed for Traxxas TRX-4 platforms at stock ride height. Installation is straightforward for anyone familiar with Traxxas hardware — the mounting dimensions are exact OEM replacements, so no drilling or adaptation is needed. The blue anodized finish is a cosmetic choice but also serves as a harder surface layer compared to bare aluminum, adding a layer of durability against rock rash and trail debris. Our team's experience with Traxxas OEM shocks is consistently positive: they seal well, they stay sealed, and the factory-spec spring rates are calibrated to match the vehicle's stock weight distribution.
The tradeoff is price. Traxxas commands a premium over aftermarket alternatives for what amounts to factory-spec performance rather than performance above stock. For anyone running a competition-prepped TRX-4 with significant weight additions, the DRX dual-rate options may offer more tuning flexibility. But for a clean OEM-quality rebuild that brings a worn TRX-4 back to factory feel, these are the definitive choice.
Pros:
Cons:

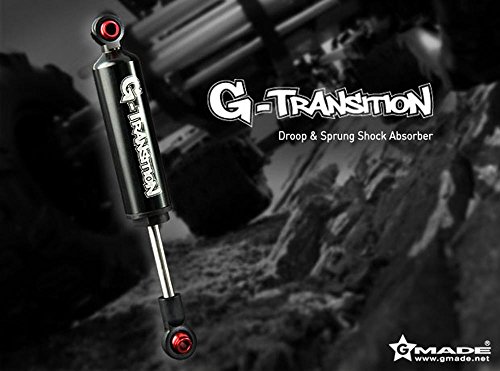

The Gmade G-Transition shocks occupy a distinctive position in the 1/10 crawler market. CNC-machined aluminum bodies with double O-ring shaft seals give these shocks a build quality that punches well above what the price tag suggests. The double O-ring seal is a detail worth emphasizing: single O-ring designs are the most common leak point in budget shocks, and Gmade's decision to use a dual seal dramatically extends service intervals. Less time rebuilding shocks means more time on the trail.
At 80mm eye-to-eye, this is the shortest shock in our roundup, and that makes it the right pick for stock-height 1/10 scale crawlers and scale trucks where longer shocks would sit at an angle that compromises geometry. The shaft exits cleanly through the seal without the side-wobble that affects cheaper cast bodies, and the spring retention is secure enough that we did not see any spring pop-off during full-articulation testing. Gmade's product has been in the crawler community since the early days of the hobby, and the G-Transition line has accumulated a strong reputation for reliability that newer budget brands simply have not had time to earn.
The 80mm length is a constraint for anyone planning suspension modifications that require additional travel. For stock builds or mild lifts, however, this shock delivers reliable performance at a fair price point. Anyone also researching shocks for full-size 4x4 trucks will recognize the same engineering principles — double seals, machined bodies, and appropriate spring rates — applied at 1/10 scale.
Pros:
Cons:
Yeah Racing's Desert Lizard dampers take a fundamentally different approach from conventional coil-over shocks. Rather than a single external spring, these use a two-stage internal spring configuration — a design borrowed from full-scale race damper engineering. The pre-installed spring combo is calibrated for heavy rigs with dense bodies, brass inserts, and portal axles, making these an immediate fit for anyone who has added significant scale weight to a competition crawler. The aluminum construction keeps the shock body itself light while handling the higher spring forces that heavyweight rigs demand.
Compatibility is broad: Yeah Racing lists HPI Crawler King, Gmade R1 Komodo, Vaterra K5, Axial SCX10, and general 1/10 crawlers in the fitment guide. We confirmed fit on an SCX10 II with a brass skid plate and heavy resin body without any mounting interference. The internal spring design does add a layer of complexity to rebuilding — disassembly requires more steps than a standard coil-over — but service intervals are long enough that most builders will not encounter this often.
The key caveat from Yeah Racing themselves, and one we fully endorse: experiment with spring combinations based on rig weight and tire size. The pre-installed setup handles heavy configurations well, but lighter builds will likely want a softer spring pairing to avoid an overly stiff initial rate. For scale builders who have invested heavily in brass and detail parts, this is the shock that matches the build philosophy.
Pros:
Cons:
Vanquish Products occupies the premium tier of the RC crawler aftermarket, and the S8E 90mm shock set reflects that positioning in every dimension. These shocks are engineered to look and perform like scale representations of full-size off-road dampers, with machined detail work that holds up under close inspection and photography. For builders competing in scale class events or building display-quality crawlers, appearance is a legitimate specification — and Vanquish delivers on it without sacrificing function.
The S8E designation reflects a genuine performance focus beyond cosmetics. The shock bodies are precision-machined from billet aluminum to tolerances that eliminate shaft wobble entirely, and the internal volume is optimized for consistent damping through the full stroke. At 90mm eye-to-eye, these fit the most common 1/10 scale platforms directly. The Vanquish brand has built its reputation on parts that enthusiasts pass between multiple builds over years of use — a warranty of quality that is difficult to attach a price to but easy to recognize once experienced.
The premium is real. Vanquish S8E shocks cost more than any other option in this roundup, and most buyers who are primarily focused on performance over appearance will find equal function from the INJORA DRX at a lower price. But for the serious scale hobbyist — the builder who cares that the shock body profile matches a 1:1 reference vehicle — there is no substitute at this length. We recommend pairing these with a well-researched crawler build, similar to the approach we outline in our RC monster truck guide where matching components to the build's purpose drives every decision.
Pros:
Cons:
RC4WD is a USA-based company with parts sourced from Chinese manufacturing, and the King Off-Road shocks reflect a smart balance of accessible pricing and dual-spring engineering. At 120mm, these are the longest shocks in this roundup and are designed specifically for long-travel applications on the platforms that defined the 1/10 crawler hobby: Axial SCX-10, Wraith 4WD Rock Racer, XR10 Crawler, Losi 1:18 Mini-Rock Crawler, RC4WD Trail Finder 2, Tamiya CC-01 and CR-01, and Vaterra Ascender builds. The compatibility list alone makes these one of the most platform-agnostic options available at the 120mm length.
The dual spring configuration provides progressive rate damping without the complexity of an internal spring design. The outer spring handles initial travel with a softer rate, and the inner spring engages progressively as the shock compresses further — a setup that works well for heavy builds that need controlled bottoming resistance on hard pack terrain. RC4WD part number Z-D0067 is widely stocked across major retailers and hobby shops, which matters for builders who prefer to source locally rather than wait on shipping.
Build quality sits in the mid-range tier. The machined bodies are functional without the tight tolerances of Vanquish or the dual-rate spring flexibility of INJORA's DRX line. For builders running one of the supported platforms who need a reliable 120mm shock without spending into the premium bracket, the King Off-Road delivers consistent performance and the reassurance of broad community support and readily available replacement parts.
Pros:
Cons:
Shock length is the first specification that must match the build — everything else is secondary if the mounting geometry is wrong. Length in RC shocks is measured eye-to-eye (center-to-center) between the pivot points, not the overall physical length of the body. Most stock 1/10 platforms run 80mm to 90mm shocks, while lifted builds and portal axle conversions commonly require 100mm to 120mm. A shock that is too short will limit droop travel and reduce articulation; a shock that is too long will bind at full compression or interfere with chassis components. Always verify the eye-to-eye measurement against the current shock length before ordering, and cross-check against the manufacturer's vehicle fitment list where available.
Platform compatibility also extends to mounting hardware. Some shocks use fixed ball ends; others use threaded adjusters or swappable rod ends. For multi-platform builders who swap components between rigs, choosing shocks from a brand like INJORA that offers the same design across five length variants simplifies inventory significantly. According to Wikipedia's overview of radio-controlled vehicles, the 1/10 scale class remains the most widely supported in terms of aftermarket parts, which is reflected in the depth of shock options available at this scale.
Spring rate determines how much force is required to compress the shock through its travel, and it needs to match the vehicle's total weight including battery, body, and any brass ballast. A spring that is too soft causes the chassis to bottom out on hard impacts; a spring that is too stiff prevents full articulation on loose terrain. Dual-rate spring systems — like those on the INJORA DRX series — solve this by providing a soft initial rate for articulation and a progressive secondary rate for bottoming resistance, all within a single shock assembly. Single-rate shocks can work well when the spring is correctly matched to the build weight, but they offer no in-field adjustment without carrying spare springs.
For heavy builds with brass inserts, scale bodies, and portal axles, a heavier spring rate is essential from the start. Yeah Racing's Desert Lizard ships pre-configured for this use case. For stock builds or rigs that change configuration frequently, a dual-rate system or a shock that accepts swappable springs offers the most flexibility without requiring a complete shock swap when the build weight changes.
All seven shocks reviewed here use aluminum bodies, but the manufacturing method makes a significant difference in real-world performance. CNC-machined billet aluminum produces tighter bore tolerances than cast or turned aluminum, which means the shaft fits more precisely, side-load forces are resisted more effectively, and seal wear is reduced. PTFE-coated bodies, as seen on the Traxxas GTR xx-Long, go further by reducing internal friction during the shaft stroke — the difference is palpable during initial break-in and throughout the shock's service life.
Seal design matters as much as body material. Double O-ring shaft seals, as used by Gmade on the G-Transition, dramatically reduce leak rates compared to single-seal designs. Shock oil leaks are the most common failure mode in RC crawler shocks — a gradual process that progressively degrades damping until the shock is running dry. Investing in a shock with robust sealing from the start saves repeated rebuilds. For builders curious about how these component quality principles translate to the full-scale world, our RC submarine guide explores a similar engineering-first approach to waterproofing and seal integrity in a different hobby context.
Several shocks in this roundup — particularly the INJORA DRX series — do not include shock oil. This is not a cost-cutting shortcut; it reflects the reality that the correct oil viscosity depends on the rig's weight, spring rate, and driving terrain. Heavier rigs and stiffer springs generally require thicker oil (40wt to 60wt) to prevent the shock from cycling too quickly through its travel. Lighter stock builds often perform better with 25wt to 35wt oil. Getting the oil viscosity right is as important as selecting the correct spring rate, and the two specifications interact — a softer spring with thick oil can mimic a stiffer spring with thin oil at slow crawling speeds, but behave very differently on a high-speed descent.
Most RC specialty retailers stock silicone shock oil in 10wt increments from 10wt to 100wt. Starting in the 30wt to 40wt range for an average 1/10 build and adjusting based on observed behavior is the standard approach our team recommends. Filling the shock fully — without air bubbles — and bleeding the shaft before final assembly is essential for consistent damping.
Most stock 1/10 scale crawlers — including the Axial SCX10 series, Traxxas TRX-4, and Redcat Gen9 — run 80mm to 90mm eye-to-eye shocks at stock ride height. Lifted builds with body mounts, portal axles, or extended links typically require 100mm to 120mm. The safest approach is measuring the existing shock eye-to-eye before ordering a replacement, since factory specs can vary between model years on the same platform.
Yes — oil-filled shocks require silicone shock fluid to function. The oil creates hydraulic resistance that controls damping speed. For a stock-weight 1/10 crawler, 30wt to 40wt is a reliable starting point. Heavier builds with brass and scale accessories respond better to 45wt to 60wt. The shock oil must be matched to the spring rate — running thick oil with a very soft spring produces overdamped, sluggish behavior. Several shocks in our roundup, including the INJORA DRX series, do not include oil and require a separate purchase.
A dual-rate spring system uses two springs of different wire diameters (and therefore different spring rates) stacked on the same shock body. The softer spring engages first, allowing the suspension to articulate freely over low-load terrain. As the shock compresses further, the stiffer spring engages progressively, providing resistance against bottoming. This design gives a single shock the compliance of a soft spring at low loads and the control of a stiff spring under heavy impact — without requiring a separate spring swap for different conditions.
Most 1/10 scale aftermarket shocks use standardized mounting dimensions that fit Axial, Traxxas, Gmade, and similar platforms at matching length specifications. However, "compatible with 1/10 crawlers" is a broad claim — the eye-to-eye length must match the existing shock, and the rod end diameter and thread pitch must fit the vehicle's shock towers and links. Always verify the mounting spec in the product listing against the vehicle's service manual before ordering. Platforms with proprietary suspension geometry — some Traxxas models specifically — benefit most from OEM-spec replacements like the TRA7462.
Service interval depends heavily on use conditions, oil viscosity, and seal quality. For regular trail use — several sessions per month — inspecting seals and oil level every three to four months is reasonable. Signs that a rebuild is needed include visible oil weeping around the shaft, inconsistent damping response (one shock cycling faster than its pair), or a soft, springy feel with no hydraulic resistance. Shocks with double O-ring seals like the Gmade G-Transition typically extend service intervals significantly over single-seal designs.
External coil-over shocks — the majority of options in this roundup — use a spring wound around the outside of the shock body. Spring swaps are simple and fast, and spring rate adjustment is accessible without disassembly. Internal spring shocks, like the Yeah Racing Desert Lizard, package the spring inside the shock body for a cleaner external profile that better mimics full-scale off-road dampers. Internal designs are typically calibrated for specific weight ranges and require more disassembly to change spring rates. For heavy-rig builders seeking scale appearance and appropriate spring loads, internal designs are worth the added complexity.
The right shock is the one matched to the actual weight of the build — get that pairing correct, and everything else about a crawler's performance falls into place.
