If you want a no-hassle connection right now, the SharkBite Max 1/2 Inch Coupling is the fitting to grab — it slides onto PEX, copper, CPVC, and HDPE without a single tool, soldering iron, or drop of glue. That said, PEX fittings are not a one-size-fits-all category. Whether you're replumbing a bathroom, running a radiant floor loop, or just patching a leaky joint, the right fitting depends on your pipe type, connection method, and how much you're willing to spend per piece.
In 2026, cross-linked polyethylene (PEX) pipe is the dominant choice for residential plumbing — flexible, freeze-resistant, and dramatically easier to work with than copper. But PEX is only as reliable as its fittings. A bad fitting leaks. A mismatched fitting fails entirely. We reviewed 99+ models across seven categories to find the options that earn their spot in your toolbox, whether you're a weekend warrior or a working plumber. If you're doing broader home improvement work, our home improvement guides cover a wide range of tools and materials worth checking out.
Below you'll find detailed reviews of seven top-performing PEX fittings spanning push-to-connect, expansion, crimp, and threaded transition designs. After the reviews, there's a buying guide breaking down the key specs you need to understand before you add anything to your cart, plus an FAQ covering the questions that come up most often.
Contents

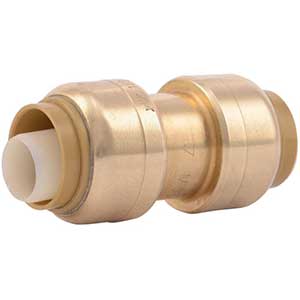

The SharkBite Max 1/2 Inch Coupling is the fitting that makes plumbers debate whether DIYers even need a plumber anymore. You push the pipe in, the internal collet grabs it, and you're done. No torch, no crimper, no expander tool — just push and walk away. It works on PEX, copper, CPVC, PE-RT, and SDR-9 HDPE in any combination, which means you can transition between pipe types at the same fitting without an adapter. That's a genuine advantage when you're working in older homes with mixed plumbing.
The "Max" generation brings two meaningful upgrades over the classic SharkBite line. First, there's no PEX tube liner required when you're connecting copper or CPVC — older push-connect fittings needed a liner to prevent the pipe from collapsing into the fitting and restricting flow. Second, the reinforced stainless steel collar delivers roughly 50 percent less insertion force, meaning the pipe seats faster and with less effort. If you've ever fought a stubborn push-connect fitting in a tight crawl space, that's a real quality-of-life improvement.
One honest caveat: push-to-connect fittings like this one cost more per piece than crimp or clamp alternatives. If you're running 200 feet of PEX with dozens of connections, the price difference adds up fast. But for repairs, retrofits, or small runs where speed matters more than cost-per-fitting, the SharkBite Max earns its premium. It's also worth noting that you can demount and reuse it, which gives you flexibility if the layout changes mid-project.
Pros:
Cons:
If the coupling handles straight runs, the SharkBite Max 3/4 Inch 90 Degree Elbow is your go-to for turning corners without sweating a single joint. The same Max-generation technology applies here — no liner requirement for copper and CPVC, and the reinforced stainless steel collar keeps insertion force low while maintaining a grip that meets pressure ratings for residential plumbing. This is the 3/4 inch version, so it's built for main supply lines rather than branch runs, giving you solid flow capacity at the turn.
What sets this elbow apart is the same material flexibility you get with the Max coupling. You can connect two different pipe types at a 90-degree angle in one fitting. Transitioning from copper supply to PEX branch? Done in 10 seconds. No couplings, no adapters, no additional fittings cluttering the connection. The elimination of the tube liner is especially important at the 3/4 inch size, where flow restriction was more noticeable in older-generation push-connect elbows under high-demand fixtures like showers or washing machines.
The price per elbow is higher than a traditional brass sweat elbow, and that's expected. You're paying for the time you save and the reduced risk of a bad solder joint. For most homeowners doing repairs or additions, that trade-off makes complete sense. For production plumbing on new construction with hundreds of fittings, your plumber will likely choose crimp or clamp for cost efficiency. But in any repair or remodel scenario, this elbow is tough to beat.
Pros:
Cons:

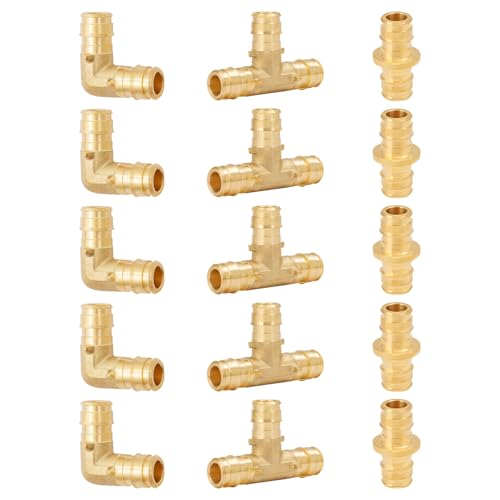

If your system uses PEX-A tubing — the kind made by Uponor, Rehau, or similar brands — then expansion fittings are the gold standard connection method. The SUNGATOR 15 Pack gives you five elbows, five tees, and five couplings in the 1/2 inch size, all compliant with ASTM F1960 and NSF/ANSI 61 certified for drinking water. That's a complete starter kit for a bathroom or utility room rough-in, and the pricing per fitting is competitive for expansion-type brass.
The expansion method works differently from crimp or clamp. You use an expansion tool to stretch the end of the PEX-A pipe, slide the fitting in, and the pipe's memory contracts back around the fitting — creating a connection that's actually stronger than the pipe itself over time. PEX-A expansion joints are widely regarded as the most durable connection type in residential plumbing, with fewer long-term leaks reported compared to crimp or push-connect under thermal cycling. The SUNGATOR fittings are made from lead-free brass rated from 32°F to 200°F, which covers both cold water supply and hot water delivery.
Keep in mind that these fittings are strictly for PEX-A tubing. They will not work with PEX-B or PEX-C, and you will need an F1960 expansion tool (sold separately). That's an added upfront cost if you don't already own one, but if you're committed to a PEX-A system, the investment pays off in the quality of every connection you make. The 15-pack variety gives you enough parts to plan a layout without running back to the hardware store mid-project.
Pros:
Cons:
When you need volume at a fair price without sacrificing code compliance, the SUNGATOR 25-Pack 1/2 inch Coupling is a straightforward choice. You get 25 couplings — enough for a decent-sized PEX run — made from lead-free brass that meets ASTM F1807, NSF/ANSI 61, and UPC standards. These are crimp-style fittings, meaning you'll use a PEX crimping tool and copper crimp rings to make the connection. If you already own a crimper, this pack delivers solid value per fitting.
Crimp connections are the most common PEX connection method in North America, and for good reason. The tools are widely available, the technique is straightforward, and the resulting joint is reliable and code-approved virtually everywhere. The SUNGATOR couplings use the same lead-free brass formulation as their expansion line, rated for temperatures from 32°F to 200°F. That puts them comfortably within the range for cold water supply, hot water delivery, and even low-temperature hydronic radiant systems. For plumbers or experienced DIYers running long supply lines or branch circuits, buying in a 25-pack makes the cost-per-fitting very competitive.
The main limitation is that a coupling is just a straight connection — no change in direction, no branching. If your project needs elbows and tees as well, you'll need to shop those separately. Also worth noting: these are ASTM F1807 crimp fittings only, so they won't work with expansion tools. Stick to copper crimp rings and a standard F1807-compatible crimper and you'll get clean, leak-free joints every time. For comparison shopping on PEX system components, see our roundup of best radiator hoses — understanding hose and fitting compatibility translates across both heating and plumbing applications.
Pros:
Cons:
Uponor is one of the most respected names in PEX plumbing, and their ProPEX EP Elbow is the engineered polymer fitting you'll encounter in high-specification residential and light commercial installations. This is a 25-pack of 1/2 inch elbows designed specifically for Uponor AquaPEX plumbing, AquaSAFE fire sprinkler systems, and Uponor hydronic radiant heating and cooling — a versatile fitting across three demanding application types. The "EP" designation stands for engineered polymer, meaning these fittings are not brass but a high-performance polymer rated for Uponor's own PEX pipe systems.
The ProPEX connection method uses a dedicated Uponor expansion tool to stretch the pipe end, and the fitting features a design that cannot be dry-fit — if it feels like it's seated, it's properly connected. That anti-dry-fit design is an important quality control feature on job sites or for DIYers who might rush through the seating step. The engineered polymer construction is corrosion-proof and smooth-bore, which actually delivers better flow characteristics than some brass fittings under comparable pressure. If you're building or retrofitting a radiant floor heating system — one of the top-performing comfort upgrades explored in projects like our guide on best wooden countertops and home interior upgrades — Uponor's ProPEX system is a premium path worth considering.
The trade-off is system lock-in. These fittings are designed for Uponor AquaPEX tubing and Uponor expansion tools. Mixing brands on an F1960 expansion system can cause issues with ring sizing and seating geometry. If you're already in the Uponor ecosystem, this is a no-brainer purchase. If you're starting fresh, factor in the tool cost and the commitment to a single-brand system before going this route.
Pros:
Cons:
For 3/4 inch main line work, the EFIELD 30-Pack delivers one of the best value propositions on this list. You get 10 tees, 10 elbows, and 10 couplings — a balanced variety for running a main supply circuit with multiple branch points. EFIELD sources directly from one of the largest PEX pipe manufacturers, which keeps the quality consistent and the pricing sharp. The fittings are certified DZR (Dezincification Resistant) brass, an important spec for potable water applications since standard brass can leach zinc over time in certain water chemistries.
These are ASTM F1807 crimp fittings, compatible with both copper crimp ring systems and stainless steel clamp systems — so you have tool flexibility. DZR certification is a detail worth paying attention to if you're in an area with aggressive or low-pH water. Standard yellow brass fittings can dezincify over years, leaving a weak, porous structure behind. DZR brass resists that process, which is one reason EFIELD's fittings show up in contractor orders as much as in retail carts. The 30-piece variety is ideal for main supply line work where you'll be making turns, branches, and straight extensions in the same run.
One thing to be clear about: these are barb crimp fittings, NOT compatible with expansion fitting systems. If you try to use them with an expansion tool and expansion rings, you'll get a failed connection. Stick with your standard F1807 crimp tool and copper rings, and these fittings will serve you well for decades. Given EFIELD's position in the supply chain, you're getting factory-direct quality at a competitive per-fitting price. This is a solid choice for any plumber or serious DIYer running 3/4 inch PEX in 2026.
Pros:
Cons:
At some point in almost every PEX project, you need to connect to something threaded — a water heater, a pressure-reducing valve, a hose bib, or a fixture shutoff. The XFITTING 3/4 inch PEX x 3/4 inch Male NPT 90-Degree Elbow is built for exactly that moment. One end accepts standard PEX-B crimp or clamp connections; the other end is a male NPT thread for direct connection to any standard threaded fitting, valve, or appliance port. The 90-degree angle means you can come out of the wall or floor and turn directly into your connection point without an extra elbow in the run.
XFITTING's design is certified to ANSI-61/NSF and ASSE 1061 — the product standard specifically for PEX-to-thread transitions in potable water and hydronic heating systems. The NSF certification here is non-negotiable if you're connecting to a drinking water line, so it's good to see it confirmed. The fitting is compatible with a wide range of PEX-B tubing brands including Watts, Viega, Zurn, Nibco, and Bow — you're not locked into a single supplier for your pipe. It works with both copper crimp rings and stainless steel clamp systems, so your existing tool set likely covers it.
This is a single-piece listing, which makes it easy to grab exactly the quantity you need rather than overpaying for a large pack. If you're transitioning a water heater hook-up or connecting a manifold to a main line, one or two of these handles the job cleanly. The only watch-out: this is a PEX-B fitting, so it's not compatible with the expansion method used by PEX-A systems. Use it with standard crimp or clamp tools and you'll get a watertight threaded transition every time. For similar projects around the home, our grease for U-joints guide covers another category where connection integrity and material compatibility are equally critical.
Pros:
Cons:
Picking the right PEX fitting isn't complicated once you understand the four key variables: connection type, pipe type, material, and size. Get these right and your system will run for decades without a single drip. Get them wrong and you're cutting out a bad joint in a wall cavity. Here's what you need to know before you order.
This is the single most important decision you'll make. Each connection type requires different tools, different ring systems, and in some cases different pipe types.
Your tool situation often drives this decision as much as the pipe type. If you already own a crimp tool, crimp fittings are the practical default. If you're starting fresh on a large PEX-A system, the expansion investment pays off.
PEX-A, PEX-B, and PEX-C refer to the manufacturing method, not grades of quality — but they are NOT interchangeable across all fitting types. PEX-A (made by Uponor, Rehau, etc.) is the most flexible and best suited for expansion fittings. PEX-B is the most common and works with crimp, clamp, and push-to-connect. PEX-C is less flexible and primarily used with crimp or clamp.
Always check the fitting's certification against your pipe type. Using an F1960 expansion fitting on PEX-B tubing, for example, will produce an unreliable connection — the pipe's elastic memory is weaker and won't contract consistently. The product listings above all clearly state their compatible pipe types, and you should treat those specs as hard rules, not suggestions.
For potable water applications — anything that carries drinking water — you need fittings that are NSF/ANSI 61 certified. This certification confirms that the fitting materials won't leach harmful levels of contaminants into your water supply. All seven fittings reviewed here carry this certification. Beyond NSF, look for:
If your local code inspector will be signing off on the work, confirm which certifications your jurisdiction requires. In 2026, NSF/ANSI 61 and lead-free compliance are non-negotiable almost everywhere in the US.
PEX plumbing in residential construction uses two primary sizes: 1/2 inch for branch lines to individual fixtures, and 3/4 inch for main supply runs and trunk lines. Some high-flow applications like water heaters or whole-home manifolds may use 1 inch. Match your fitting size exactly to your pipe size — there's no overlap. If you're running a 3/4 inch main line and branching to 1/2 inch runs, you'll need reducer tees, not standard tees.
For large-scale projects, buying combo packs (tees + elbows + couplings) rather than individual fitting types saves money and ensures you have the variety you need on hand. Nothing slows down a plumbing job more than a mid-project trip to the hardware store for a single elbow. Careful planning of your fitting count before you start — and ordering a few extras as buffer — is a simple habit that saves real time.
PEX fittings connect sections of PEX (cross-linked polyethylene) pipe together or transition from PEX to other pipe materials like copper or CPVC. They come in several configurations — couplings for straight runs, elbows for direction changes, tees for branching, and adapter fittings for connecting to threaded valves or fixtures. PEX fittings are used in residential plumbing, radiant floor heating, fire sprinkler systems, and hydronic cooling applications.
The terms PEX-A, PEX-B, and PEX-C refer to the manufacturing method of the pipe itself, not the fittings — but fitting type must match pipe type in some cases. PEX-A fittings use the F1960 expansion method and only work with PEX-A tubing. PEX-B and PEX-C both use the F1807 crimp method or F2098 clamp method. Push-to-connect fittings like SharkBite Max work across all three pipe types. Always check the manufacturer's stated compatibility before purchasing.
Yes. That's one of the biggest advantages of push-to-connect fittings. SharkBite Max fittings are designed to connect two different pipe types — for example, PEX on one end and copper on the other — in a single fitting. This makes them ideal for repairs and retrofits in older homes with mixed plumbing. Just make sure both pipe ends are properly cut, deburred, and marked to the depth indicator on the fitting before seating.
It depends on the connection type. Push-to-connect fittings like SharkBite Max require no tools at all — just a clean pipe cut and a push. Crimp fittings require an F1807 crimp tool and copper rings or stainless clamps. Expansion fittings require an F1960 expansion tool, which is the most expensive of the three options. If you're starting a project from scratch, evaluate which tool investment makes sense for the size and connection type of your system.
Yes, provided they carry the NSF/ANSI 61 certification and are made from lead-free brass — both of which are required under current US plumbing standards. All of the fittings reviewed here meet these requirements. If you're purchasing fittings not on this list, always verify the NSF/ANSI 61 certification before using them on a potable water line. Uncertified fittings — particularly inexpensive imports — may not meet lead-free standards and should be avoided in any application that carries drinking water.
When properly installed and matched to the correct pipe type, PEX fittings are rated for 25 years or more under normal residential water pressure and temperature conditions. Expansion-type connections (F1960) generally show the best long-term performance under thermal cycling. Crimp and clamp fittings are also highly reliable when the crimp is made correctly — a go/no-go gauge verifies each crimp. Push-to-connect fittings have a strong track record in repair applications, though some plumbing codes restrict their use behind finished walls in certain jurisdictions.
Whether you need a single tool-free repair fitting or a bulk pack of crimp couplings for a full system rough-in, there's a PEX fitting on this list that fits your project in 2026 — take a few minutes to confirm your pipe type, connection method, and size before you order, and you'll have leak-free joints that last for decades. Browse the full range of project resources on our home improvement page to find guides for every stage of your renovation.
