A single well-chosen woodworking jig can cut your project setup time by 60% or more — and that figure comes directly from professional cabinet shops that benchmarked freehand joinery against guided drilling and routing systems. If you have ever blown out a pocket hole at an awkward angle, fought a tenon that refused to fit flush, or spent twenty minutes marking out dovetails only to see them slide crooked on the first cut, you already know why jigs exist. They remove the margin for human error and replace it with repeatable mechanical precision.
In 2026, the market for woodworking jigs is more competitive than ever. Brands like Kreg have held the top spot for pocket-hole work for years, but newer players from Milescraft, Rockler, and O'SKOOL are closing the gap fast with specialized tools that handle mortise-and-tenon, dowel, dovetail, and taper cuts with genuine shop-grade accuracy. Whether you are building furniture, cabinets, or finishing a home improvement project in your garage, the right jig makes the difference between a joint you are proud of and one you hide with filler.
This guide covers seven of the best-selling and highest-rated woodworking jigs available right now. Each one has been evaluated for build quality, versatility, ease of setup, and real-world value. You will find pocket-hole jigs, dovetail jigs, dowel jigs, a taper jig, a mortise-and-tenon router jig, and a beadlock tenon system — enough variety to cover nearly every joinery technique you will encounter in a serious woodworking shop. Read through the reviews, check the buying guide at the bottom, and pick the tool that matches your actual workflow.
Contents

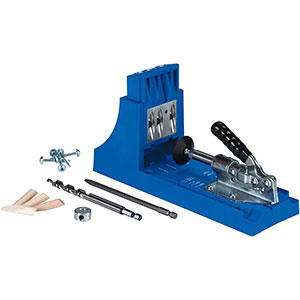

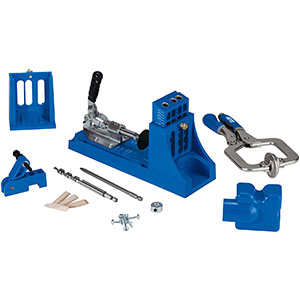

The Kreg K4 has been a benchmark pocket-hole jig for well over a decade, and in 2026 it still earns that title. The three-hole drill guide accepts material from 1/2 inch to 1-1/2 inches thick, which covers the overwhelming majority of cabinet and furniture work you will do with dimensional lumber or plywood. Setup involves sliding the material thickness selector to the correct position, locking it down, and drilling — no measuring, no marking, no guesswork. The precision of the stepped drill bit combined with the hardened steel guides produces pocket holes that are consistent down to fractions of a millimeter, which translates directly into tight, gap-free joints when you drive the screws.
Build quality on the K4 is solid. The housing is injection-molded plastic, but it is thick, well-ribbed, and designed to absorb the lateral forces you generate when drilling at the 15-degree pocket angle. The integrated clamp keeps your workpiece from shifting during the drill stroke, which matters enormously on narrow stock where freehand holding becomes unreliable. Kreg's proprietary self-tapping pocket-hole screws pull the joint together as they drive, eliminating the need for a separate clamping step on most assemblies. If you are new to pocket-hole joinery, you will be producing tight face frames and box carcasses within the first hour. If you are experienced, you will appreciate how quickly this jig becomes invisible in your workflow — set it, drill it, done.
The K4 works equally well on hardwood, softwood, MDF, and plywood. For projects that require finishing with a penetrating oil — see our guide to the best butcher block oils for wood conditioning options — the clean pocket hole placement makes sealing the joint area easy because there are no exposed end-grain surfaces that absorb product unevenly. One limitation worth noting: the K4 is a benchtop tool, not a handheld one. It requires a flat surface to operate accurately. That is fine for shop work, but if you are doing on-site cabinetry installation, you will want a portable alternative.
Pros:
Cons:

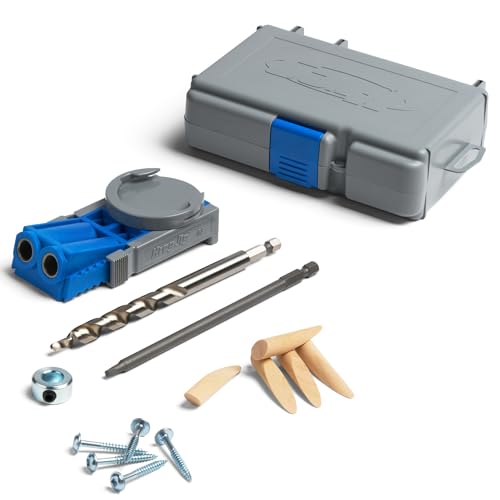

The R3 Jr. answers the question the K4 cannot: what do you use when you need pocket-hole joinery away from the bench? This is a handheld, self-clamping jig that you press directly against your workpiece, position with the built-in sliders, and drill. The clamp adaptor included with the kit allows it to work with most standard clamps, so you can secure it to a wide board or an assembled frame without modification. The positioning sliders are the key differentiator here — they let you shift the drill guide laterally so your pocket holes land exactly where they need to, even on narrow stock or at edge positions where a fixed guide would be useless.
Joint angles are adjustable, which means you can produce pocket holes at multiple orientations to reduce the visible surface on exposed joints — a technique that experienced woodworkers use when building face frames that will not be covered by doors or drawers. The R3 handles the same material thickness range as the K4 (1/2 inch to 1-1/2 inch) and uses the same Kreg drill bit and screw system, so there is zero ecosystem conflict if you own both. On a jobsite or in a partially assembled carcase where you cannot slide a benchtop jig into position, the R3 Jr. is exactly what you reach for.
The trade-off is throughput. The R3 produces one or two holes per setup rather than three, and repositioning takes longer than simply placing stock in the K4. For production cabinet shops drilling hundreds of joints per day, this tool is too slow. But for the serious hobbyist or on-site installer who values portability over speed, it is a genuinely capable and compact package.
Pros:
Cons:
The dovetail joint is one of the oldest and strongest woodworking joints in existence, used for centuries on drawer boxes, jewelry cases, and cabinet carcasses precisely because its interlocking geometry resists pulling apart under tension. Cutting them by hand takes years of practice. Cutting them with this 12-inch deluxe dovetail jig takes about twenty minutes to learn and delivers professional results from the first pass. The jig's template guides your router bit through both the pin and tail cuts in a single setup, locking the two workpieces in registered positions so the matching profiles are mechanically guaranteed to align.
The 12-inch working width accommodates drawer fronts and box sides up to that dimension, which covers the majority of furniture and cabinet applications you will encounter. The deluxe designation means this version includes the full template set for variable-spacing dovetails, half-blind dovetails, and through dovetails — three distinct joint variations that let you choose between a joint that hides completely (half-blind, used on drawer fronts), one that is fully visible from both faces (through), and one where you can vary the pin spacing for decorative effect. Setup requires a plunge router with the appropriate guide bushing and a dovetail bit; both are widely available and inexpensive.
One realistic expectation: this jig does have a learning curve compared to pocket-hole joinery. Your first few practice cuts in scrap wood are not optional — they are necessary to dial in the bit depth so the joint fits without slop or excessive force. Once you find that sweet spot, however, the jig reproduces it identically on every subsequent cut. For anyone building drawer boxes, small chests, or heirloom furniture in 2026, this tool unlocks a level of craftsmanship that otherwise requires hand-tool skills developed over years.
Pros:
Cons:
Dowel joinery produces invisible connections with excellent alignment — the wooden dowel pins glued into matching holes in both workpieces create a joint that is flush on every face, which makes it the preferred technique for tabletops, edge-joined panels, and any assembly where screws or visible fasteners are unacceptable. The challenge has always been drilling those matching holes with enough precision that the joint closes without a gap. The Milescraft 1333 solves that problem elegantly with a self-centering design and three hardened steel bushing sizes: 1/4 inch, 5/16 inch, and 3/8 inch.
The self-centering mechanism is genuinely useful — it automatically positions the drill guide on the centerline of boards from 1/2 inch to 1-1/2 inch thick, eliminating the need to measure and mark hole positions on both mating faces before drilling. You simply clamp the jig to one piece, drill, flip and clamp to the mating piece using the same registration marks, drill again, and the holes align. The hardened steel bushings keep your drill bit tracking straight rather than wandering, which is the most common failure mode with handheld doweling. Corner joints, edge-to-edge glue joints, and surface joints are all within scope.
The complete kit includes dowel centers, a depth stop, and the jig body — everything you need except the drill and dowels themselves. For a tool at this price point, the inclusion of three bushing sizes is excellent value. The metal construction throughout the bushing area gives the jig a durability advantage over plastic-bushed alternatives. If you regularly build furniture that needs to look finished from all angles and you want to avoid the visible pocket holes that pocket-hole joinery leaves on the inside faces, this dowel jig gives you a cleaner alternative with only marginally more setup time.
Pros:
Cons:
Not all jigs are about joinery. The Rockler Taper and Straight Line Jig addresses a different but equally important problem: cutting consistent tapers on table legs, chair legs, and furniture components without a dedicated shaper or CNC machine. Tapered legs are what separate furniture that looks handmade from furniture that looks designed, and cutting them accurately on a standard table saw — without a dedicated taper jig — is genuinely difficult. This tool fixes that with an indexed angle setting system that lets you dial in your taper angle, lock it, and repeat the exact cut on every leg in your set.
The 36-inch miter bar slides smoothly in any standard 3/8-inch by 3/4-inch miter slot, which means it fits the vast majority of contractor and cabinet table saws on the market. The ergonomic push handle keeps your hands well above the blade throughout the cut, and heavy-duty hold-down clamps secure your workpiece against the fence without adding height that would interfere with the blade guard. When you remove the miter bar, the same jig body functions as a straight-line ripping jig for salvaging bowed or warp-edged lumber — a capability that makes this tool genuinely dual-purpose in a way that pocket-hole and dowel jigs are not.
The included guidance booklet walks you through angle calculations for common furniture dimensions, which is a useful shortcut when you are working from a plan rather than from scratch. This jig is not for everyone — if your work never involves tapered legs or rough-edged lumber, you will not use it. But for anyone building chairs, dining tables, or benches in 2026, it is a high-value, compact tool that solves a real problem with reliable mechanical precision. If you are also concerned about maintaining your other workshop tools, our guide to the best rust removers for chrome covers keeping saw blades and metal guides in top condition.
Pros:
Cons:
The mortise-and-tenon joint is the gold standard for structural wood connections in chair construction, cabinet face frames, and table bases — and for good reason. When properly fitted, it is mechanically superior to both pocket-hole and dowel joints for applications that experience racking forces or repeated stress loading. Cutting accurate mortises and tenons by hand requires significant skill and sharp chisels. The O'SKOOL RTA009 delivers the same result through a plunge router and a set of precisely machined guide bushings that control every dimension of both cuts.
The jig handles mortises and tenons from 3/4 inch to 3-1/8 inch long, in widths of 1/4, 3/8, or 1/2 inch, across stock from 1/2 inch to 1-1/2 inch thick and wider than 2 inches. That range covers chair rail-to-leg, cabinet stretcher, and table apron-to-leg connections with room to spare. The critical engineering achievement here is that the same jig body indexes both the mortise and the tenon cuts — meaning the joint dimensions are mechanically guaranteed to match rather than depending on your measuring accuracy across two separate setups. You get a kit that includes the jig assembly, a 1/4-inch router bit, three guide bushings, lock nut, mounting adapter, self-adhesive sandpaper for grip, and a hex wrench. Nothing important is missing from the box.
Completed joints can be either glued for a permanent bond or left as a mechanical lock in knock-down furniture applications. The self-adhesive sandpaper on the clamping surfaces is a thoughtful detail — it prevents workpiece slippage during routing without adding clamps that would interfere with router travel. For anyone building chairs, tables, or case furniture that needs to handle real-world stress in 2026, this jig gives you structural joint quality that pocket-hole screws simply cannot match. If you are working on a broader renovation and need advice on protecting painted metal surfaces nearby, the guide to best paints for rusty metal covers surface prep and protection for workshop environments.
Pros:
Cons:
Beadlock joinery is Rockler's proprietary alternative to traditional mortise-and-tenon work, and it is genuinely clever. Instead of routing a rectangular mortise and cutting a matching tenon, the system drills a series of overlapping holes in a precise pattern using a hand drill and the included guide block. A specially shaped Beadlock loose tenon — pre-made to match the overlapping hole profile — glues into the resulting mortise on both mating faces. The result is a fully concealed joint that is as strong as a properly cut mortise and tenon, produced with nothing more than a standard drill, the jig, and glue.
The A/B position drilling system is what makes this work: you slide the included guide block into the "A" position to drill the initial set of holes, then move it to the "B" position to drill the overlapping second row. The hairline indicator on the jig centers precisely on a scribed centerline across both workpieces, so alignment between the two halves of the joint is accurate without requiring a registration fixture or elaborate clamping setup. The 3/8-inch kit included here is the most versatile size for furniture work — other sizes (1/4 inch and 1/2 inch) are available separately for finer or heavier applications.
Adjustment knobs allow the jig to be repositioned for off-center drilling when you want the joint offset from the board's centerline, and the entire system disassembles compactly into the included plastic case. For a woodworker who wants mortise-and-tenon strength without owning a router or learning plunge-routing technique, this is an exceptional solution. The joints are fully concealed, structurally sound, and produce clean glue surfaces without end-grain exposure. Setup time from unboxing to first joint is genuinely under thirty minutes.
Pros:
Cons:
Choosing the right woodworking jig comes down to matching the tool to the joint type you cut most often. A jig that excels at pocket holes offers you nothing if your work is primarily chair construction requiring mortise-and-tenon joints. Work through these criteria before buying.
This is the most important factor, and it is often where buyers go wrong. Every jig on this list is optimized for a specific joinery method, and using the wrong jig for a job produces either a structurally inferior joint or a visible joint in a location where it should be hidden. Pocket-hole jigs (Kreg K4 and R3) are fastest for face frames, cabinet boxes, and structural connections where the inside face is not visible. Dovetail and dowel jigs produce flush, clean faces on all sides and are appropriate when aesthetics matter. Mortise-and-tenon jigs (O'SKOOL and Beadlock) produce the strongest possible joint for furniture that takes real stress. Map your most common project types before selecting.
Most jigs on this list are rated for material between 1/2 inch and 1-1/2 inch thick, which covers dimensional lumber and standard cabinet-grade plywood. If you work regularly with thicker stock — 2-inch material for workbench tops or heavy furniture frames — verify that your chosen jig supports it before buying. Conversely, if you work with thin stock like 3/8-inch craft plywood or veneered panels, not every jig can accommodate those dimensions without a custom spacer setup. Material thickness range is a hard limit, not a soft guideline, so check the spec sheet rather than assuming.
Where you use the jig matters as much as what it does. Benchtop jigs like the Kreg K4 are faster and more stable for shop work but cannot follow you onto a jobsite or into an assembled carcase. Portable jigs like the Kreg R3 and the Milescraft DowelJig work in-place but require more setup time per joint. The Rockler Beadlock kit is compact enough to carry in a bag and needs only a hand drill, making it the most versatile option for on-site furniture assembly or renovation work. Think about where 80 percent of your woodworking happens and design your toolkit around that location.
Some jigs in this category are self-contained — you only need a drill. Others require a table saw, a plunge router, or a specific router bit to function. The Rockler Taper Jig is useless without a table saw. The O'SKOOL Mortise and Tenon Jig requires a plunge router and the appropriate guide bushing. The dovetail jig requires a router with a dovetail bit. Before you buy, confirm that you already own or plan to own the required power tool. Buying a jig without its required tool is a false economy that results in a shelf decoration rather than a working shop fixture.
A woodworking jig is a device that guides a cutting or drilling tool along a precise, repeatable path. You need one because human hands cannot hold a drill bit or router at a consistent angle repeatedly across dozens of identical cuts. Jigs replace variable human positioning with fixed mechanical geometry, which means every hole, cut, or joint comes out to the same dimension regardless of how many you make. For any woodworking beyond rough construction framing, jigs are what separate professional results from amateur ones.
Yes, for most furniture applications. Pocket-hole joints bonded with glue and driven with the correct Kreg screws achieve shear strengths that exceed what the wood fibers themselves can withstand under normal loading. The joints are not as strong as mortise-and-tenon under racking forces — repeated lateral stress like pushing on the back of a chair — but for cabinet boxes, shelving, bed frames, and most table assemblies, pocket-hole joinery is entirely sufficient and dramatically faster than traditional methods.
The Kreg K4 and R3 pocket-hole jigs are legitimately beginner-friendly — you can produce a tight, strong joint on your first attempt with minimal instruction. The Milescraft DowelJig has a gentle learning curve but is accessible with basic drill skills. The dovetail jig, mortise-and-tenon jig, and Beadlock system require a few practice cuts in scrap material to dial in settings before working on project wood. None of these tools require advanced woodworking skill, but the router-based jigs require comfort with router operation and basic bit-depth adjustment technique.
Any standard corded or cordless drill works with pocket-hole jigs. Kreg's stepped drill bit fits a standard 3/8-inch chuck, which is universal on consumer and professional drills. A cordless drill in the 12V to 20V range provides plenty of torque for pocket-hole drilling in hardwood and softwood without bogging down. If you plan to drill at high volume — cabinet production rather than occasional DIY — a second drill dedicated to driving screws speeds up the workflow considerably so you are not swapping bits between drilling and fastening.
A mortise-and-tenon jig like the O'SKOOL RTA009 uses a plunge router to cut a precisely dimensioned rectangular mortise and matching tenon directly from your stock. A Beadlock jig uses a hand drill to create a series of overlapping holes that accept a pre-formed loose tenon insert. Both produce concealed structural joints. The O'SKOOL method produces a tighter-fitting traditional joint with slightly more material precision but requires a router. The Beadlock method needs only a drill, works faster, and is more portable, but requires purchasing Rockler's proprietary loose tenons as a consumable.
Accuracy in most jigs depends on keeping the guide surfaces clean and free from sawdust buildup that can affect registration. Wipe down metal guide plates and bushings with a dry cloth after each use. Check drill guide holes periodically for wear — a worn bushing causes the bit to wander, which destroys joint accuracy. Store jigs in their cases or in a dedicated drawer rather than loose in a tool pile where they can be bent or dinged. Metal components benefit from a light application of paste wax on sliding surfaces to keep movement smooth without attracting sawdust.
In 2026, there is no reason to cut a joint freehand when a well-designed jig can give you machine-level precision with a hand drill and five minutes of setup. Start with the tool that matches your most common project type — the Kreg K4 if you build cabinets and furniture regularly, the O'SKOOL or Beadlock if structural strength in chairs and tables is your priority, the dovetail jig if craftsmanship and appearance define your work. Pick the right jig for your shop, and you will wonder how you ever worked without it.
